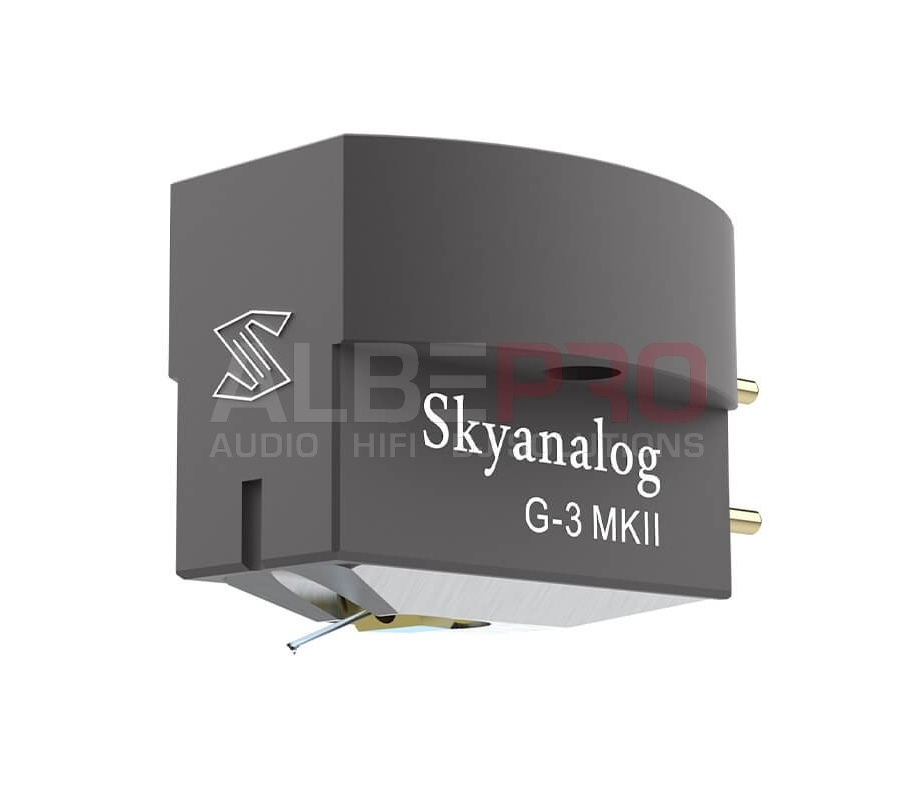

Skyanalog G-3 MKII

Skyanalog G-3 MKII

The Skyanalog G-3 MKII features a Sapphire cantilever and an Elliptical Fineline stylus, combined with the advanced new Yan system. The G-2 MKII is the second model in the Skyanalog G series.

Technical Construction of the Skyanalog G-2 MKII:

• Stylus: Diamond Elliptical Fineline grinding with a radius of 5 µm (length 150 µm).
• Cantilever: Sapphire for ultimate low moving mass and even higher stiffness (handle with care).
• Components: Cross-wound iron coils, aluminum casing, solid plastic stylus protection.

The Yan System:
What makes an excellent MC cartridge? The Suspension System!
The essence of MC cartridges is the suspension system, fundamentally determined by the interaction between the spring (piano wire) and the rubber ring.
Moreover, the art of damping is essentially "matching" – ensuring that every part works in harmony.
Therefore, a precise factory setting according to specifications is required to ensure balanced music reproduction.

Since 2024, the Yan system has been added, lowering the recommended tracking force to 1.1–1.4 grams. This reduces the skating force, minimizes distortion, and allows for a more flexible tonearm adjustment.

Features of the Skyanalog Yan Suspension System:

• Minimal loss of information and distortion.
• Exceptional dynamic range and lifelike sound reproduction.
• Enhanced transient response and clarity.
• Analytical yet warm acoustics.
• Tracking force of only 1.1–1.4 grams.

Extra Bubble Formula:

State-of-the-art Soundstage and Imaging:
Thanks to the dense air hole structure, the damper provides richer information, which is utilized to create the most lifelike soundstage we’ve ever heard.

Minimal Phase Distortion:
An accurate sound image is achieved through minimized phase distortion. Every detail from the recording can be clearly identified.

Enhanced Transient Response:
With faster energy transfer and less hysteresis, the new formula damper is more analytical but also musically enjoyable.

Unbelievable Flat High-Frequency Response:
The extra-bubble damping rubber finds a balanced match with the new spring, enabling high-fidelity high-frequency pickup, taming the bottleneck of traditional MC cartridges.

Technical note – system matching and headshell mass

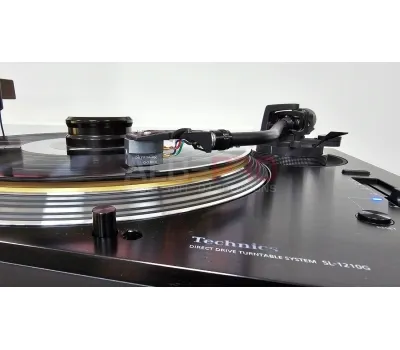

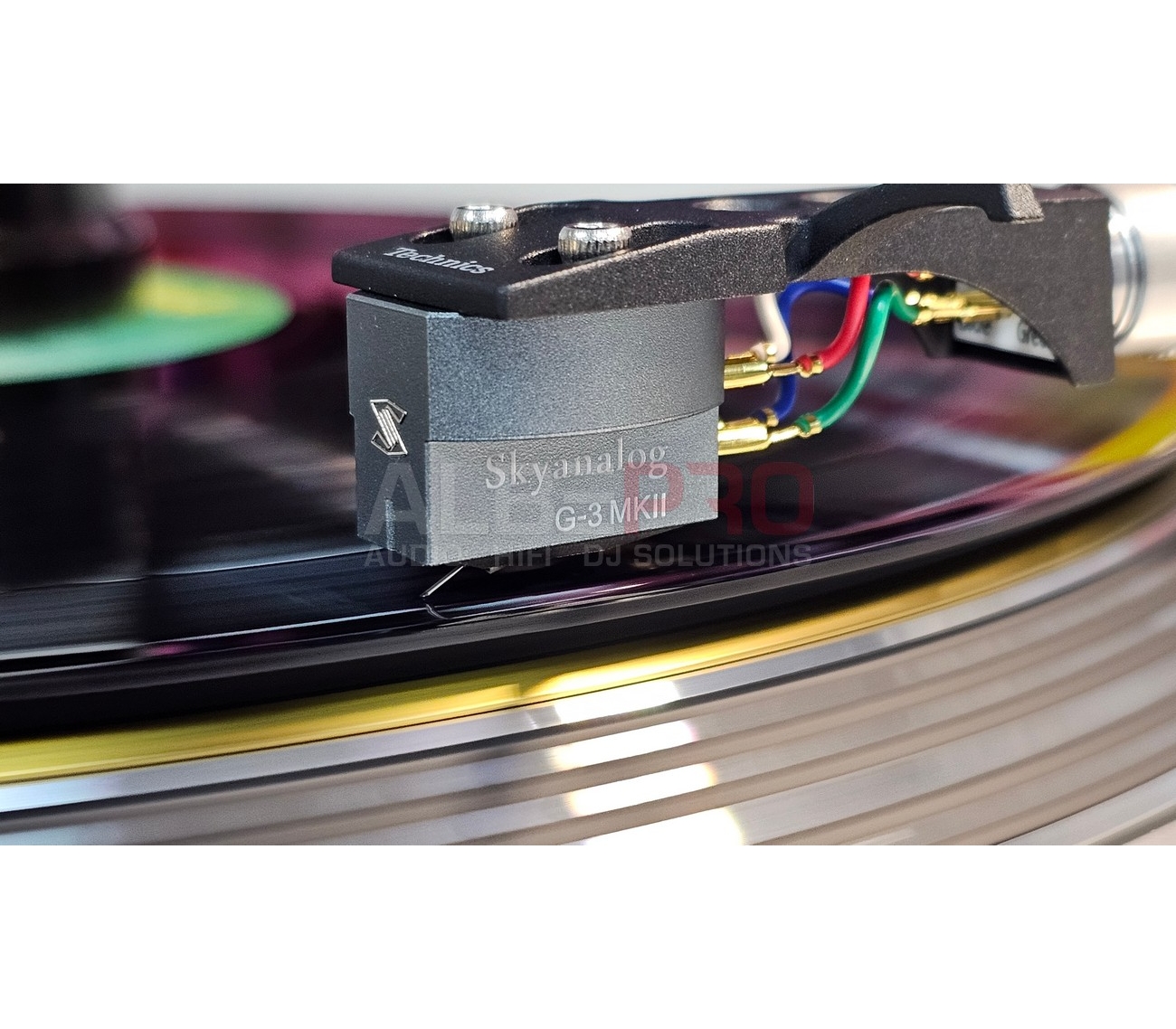

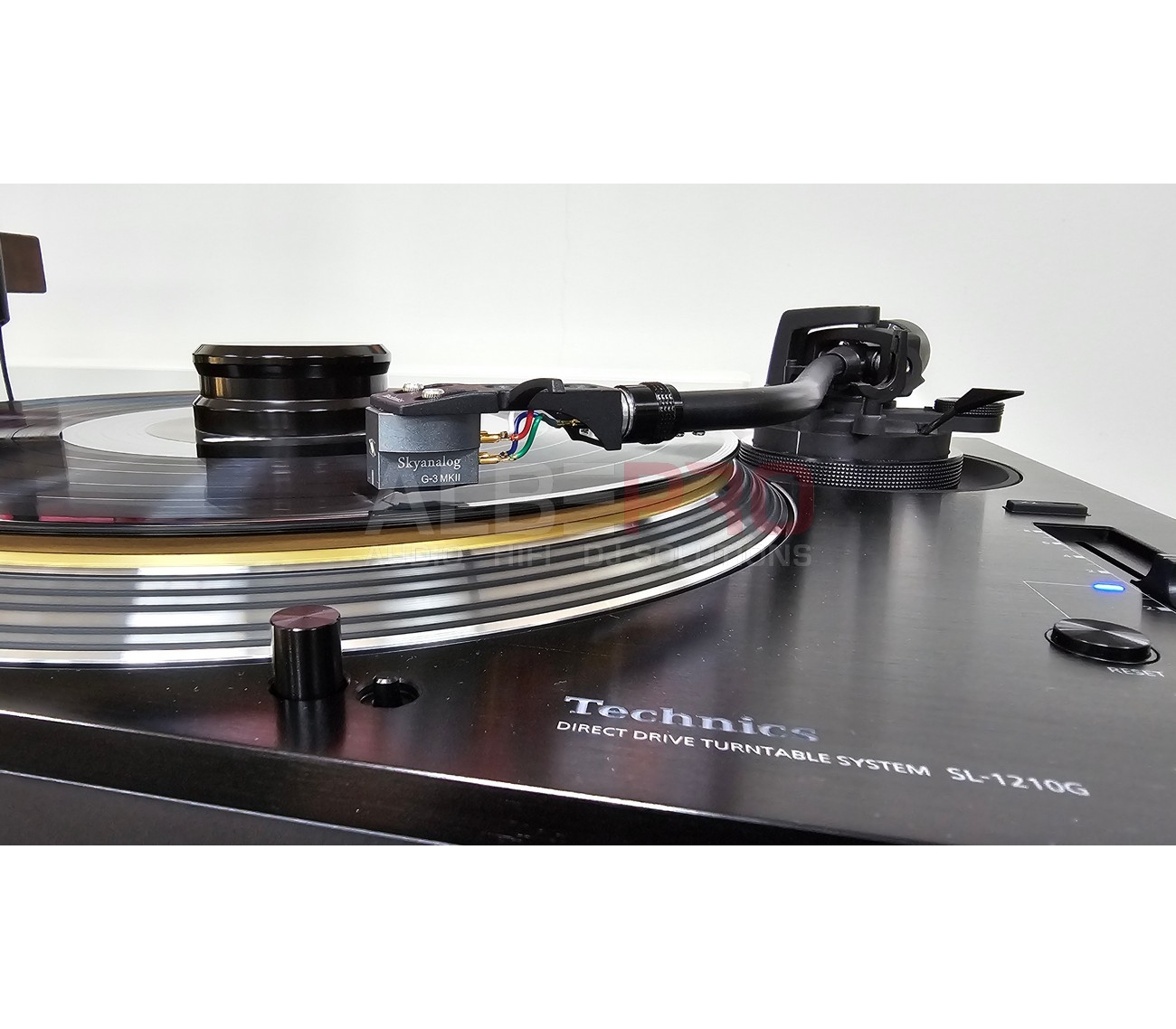

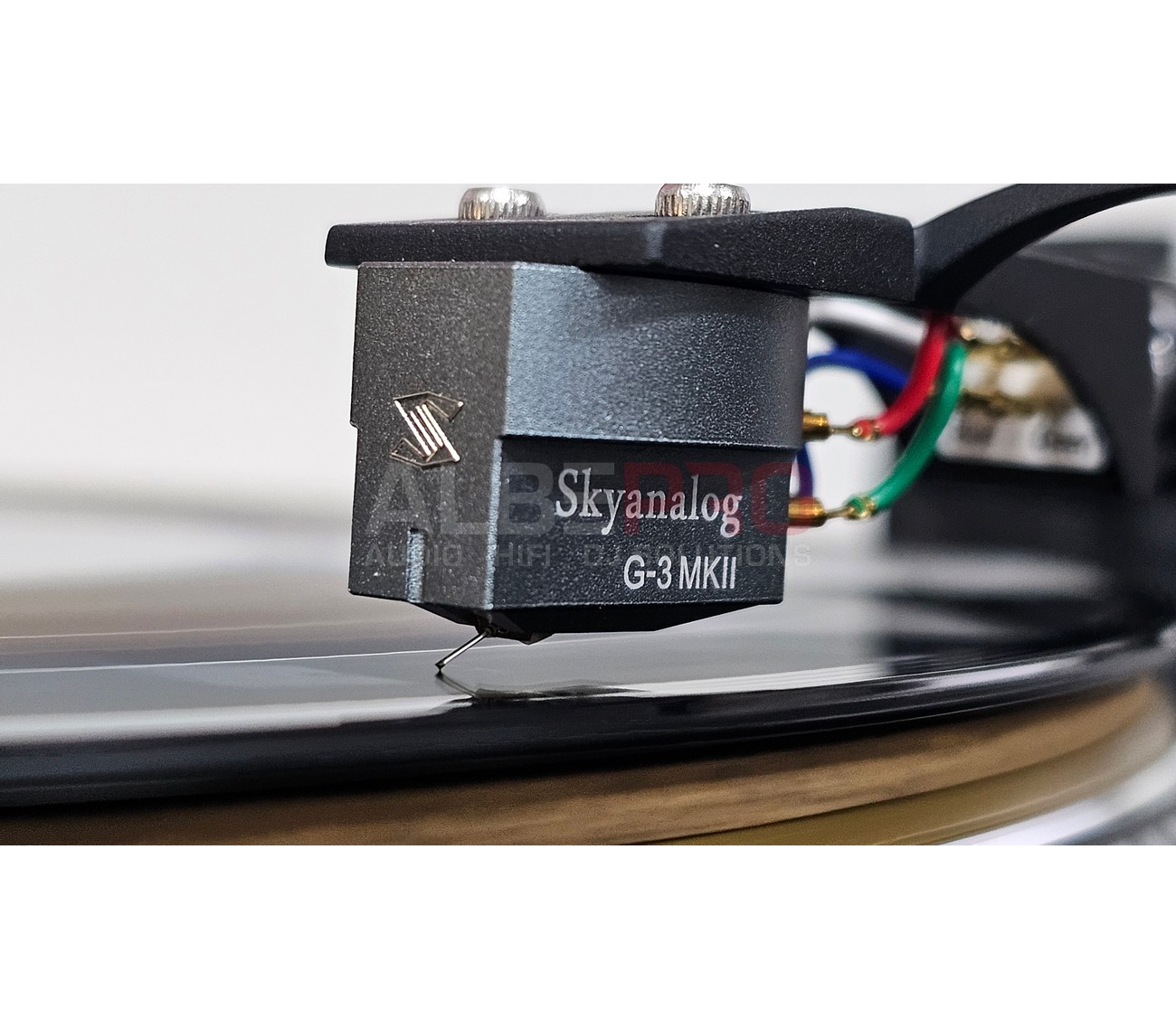

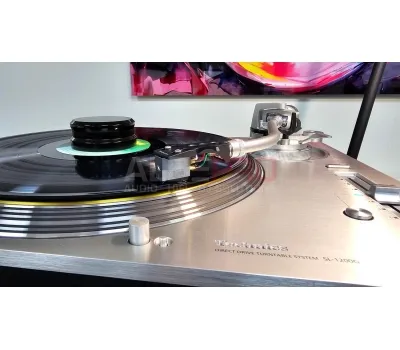

During practical tests with Skyanalog cartridges on Technics SL-1200MK2, Technics SL-1200MK4, Technics SL-1200GR2 and Technics SL-1200G systems, a consistent mechanical behaviour has been observed in the low-frequency reproduction when using standard headshell configurations.
This behaviour is reproducible across multiple turntables and multiple samples of the cartridge.
In all cases, a clear improvement was achieved by increasing the total effective mass of the tonearm system, resulting in a shift of the system resonance into an optimal operating range.
This can be achieved through a combination of headshell mass and the use of an auxiliary weight mounted at the rear of the tonearm.

Practical configurations (Technics S-arm systems) (blue text are direct links)

Auxiliary weight 16 grams Technics Auxiliary Weight 16g
(Technics part references: TKKH51441 / TPAKK61)
→ recommended headshell mass: 11–14 grams
→ example: Audio-Technica AT-LH13H

Auxiliary weight 26 grams Technics Auxiliary Weight 26g
(Technics part reference: TPAKK62)
→ recommended headshell mass: approx. 17 grams
→ example: Nagaoka HS-10

The effective headshell mass is therefore not a fixed value, but depends on the total system configuration including the selected auxiliary weight.

Technical explanation
The most likely explanation is a mismatch between tonearm effective mass and the dynamic properties (compliance) of the cartridge, resulting in a system resonance that is slightly too high in the standard configuration.
By increasing the total effective mass, the resonance frequency is shifted into an optimal range (approximately 8–12 Hz). This results in stable tracking and a tighter, more controlled low-frequency response.

Conclusion
For Technics S-arm systems, correct adjustment of total effective mass — using headshell mass and/or an auxiliary weight — is essential for optimal performance of Skyanalog cartridges and maximum playback stability.

Stylus care
Use only a dry brush to clean the stylus. The use of cleaning fluids is not recommended, as it may damage the cantilever or suspension. Handle the stylus with care for optimal performance.

Break-in period
The cartridge requires an approximate break-in period of 30 hours at an average temperature of around 23°C. The packaging includes mounting screws and an Allen key for easy installation.
