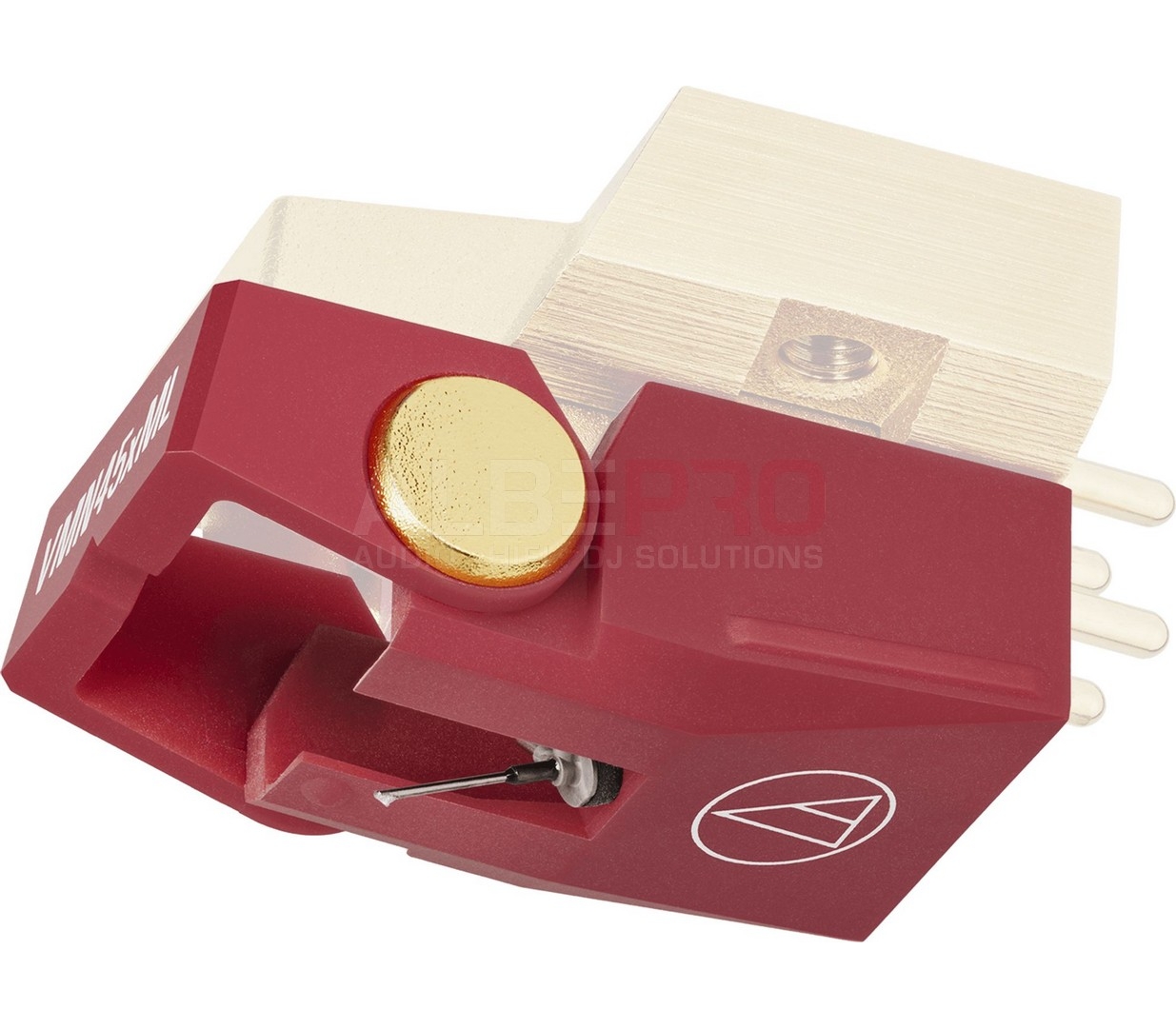

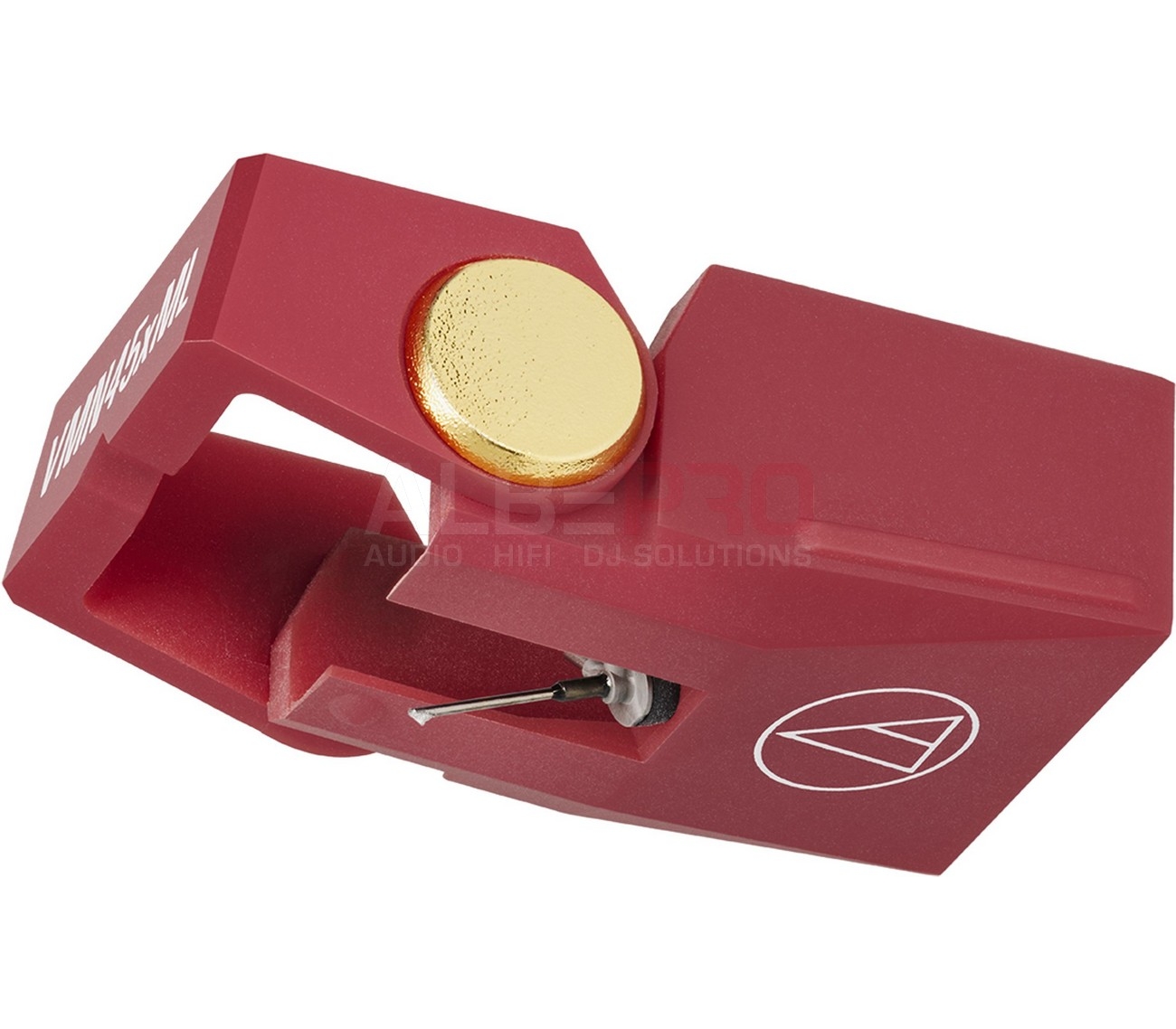

Audio-Technica AT-VMN45xML

Audio-Technica AT-VMN45xML – Microlinear Stylus with Boron Cantilever

Premium replacement stylus for AT-VM745xML cartridge

Rediscover your vinyl collection with the Audio-Technica AT-VMN45xML — a high-end replacement stylus featuring a one-piece Microlinear diamond tip mounted on a solid boron cantilever. Engineered for extreme precision and maximum groove contact, this stylus delivers crystal-clear sound with minimal distortion and superior vinyl preservation.

Key Features

✅ Microlinear stylus tip (nude diamond) – follows groove modulations with extreme accuracy
✅ Solid boron cantilever – fast, accurate transmission with minimal resonance
✅ Long lifespan – up to 1,000 hours of playback
✅ Reduced distortion, especially toward the inner grooves
✅ Enhanced stereo separation and imaging
✅ Compatible exclusively with the AT-VM745xML cartridge
✅ Easy, tool-free installation
✅ Recommended tracking force: 2.0 g (range: 1.8 – 2.2 g)

Microlinear Technology: Inspired by the Original Cutting Stylus

The Microlinear stylus profile is based on the same shape used in mastering lathes to cut vinyl records. This design ensures the widest possible contact area with the groove walls, extracting every musical detail — including those lost by conventional conical or elliptical stylus shapes.

You’ll experience a more lifelike presentation, especially in high frequencies, with increased clarity, separation, and a more natural soundstage. Instruments and vocals feel present, lifelike, and precisely placed in space.

Exceptional Longevity – Up to 1,000 Hours

Unlike traditional elliptical styli (300 hours) or conical tips (500 hours), the AT-VMN45xML is engineered to deliver up to 1,000 hours of high-fidelity playback. Its advanced design distributes pressure evenly across the groove, reducing wear and tear on both the stylus and your records.

The solid boron cantilever further enhances performance, offering a superior stiffness-to-weight ratio that preserves every nuance of the original recording.

Simple Installation & Compatibility

Designed specifically for the Audio-Technica AT-VM745xML cartridge, this stylus is easy to install without special tools. Simply remove the worn stylus and click the new one into place — you’ll hear a satisfying click when it’s properly seated.

✅ Tracking force: 1.8 – 2.2 grams (optimal: 2.0 g)
✅ Be sure to check alignment and anti-skating for best results

Frequently Asked Questions

Is the AT-VMN45xML compatible with other cartridges?
No, this stylus is designed exclusively for the Premium AT-VMx cartridges. It’s not compatible with other models in the Audio-Technica range. Always confirm the exact cartridge model before purchasing a replacement stylus.

What’s the audible difference between a Microlinear and elliptical stylus?
A Microlinear stylus offers higher precision, especially in the upper frequencies. Expect improved vocal clarity, instrument separation, and reduced inner-groove distortion — especially noticeable on complex recordings.

Why is a solid boron cantilever superior to aluminum?
Boron is stiffer and lighter than aluminum, allowing for faster signal transmission and minimal resonance. The result is a more accurate and detailed audio reproduction.

Can I use this stylus to play 78 RPM records?
No. The AT-VMN45xML is designed for modern microgroove records (33⅓ and 45 RPM). For 78s, use a dedicated stylus such as the AT-VMN70xSP.

Order the Audio-Technica AT-VMN45xML at ALBEPRO

For audiophiles who demand uncompromising quality. The AT-VMN45xML offers exceptional performance, durability, and sonic accuracy — the perfect upgrade for your AT-VM745xML cartridge.

✔️ Genuine Audio-Technica product
✔️ Made in Japan
✔️ Outstanding sound detail
✔️ Minimal wear on records
