Audio-Technica AT-VM510xCB
Hover over an image to enlarge
Audio-Technica AT-VM510xCB: Conical Stylus for Optimal Sound
Looking for a high-quality stylus for your turntable that offers both precision and durability?
The Audio-Technica AT-VM510xCB is the perfect choice for audiophiles and vinyl collectors who want sharp, detailed sound reproduction. This conical stylus ensures optimal performance, allowing you to get the most out of your vinyl collection.
Why Choose the Audio-Technica AT-VM510xCB?
-

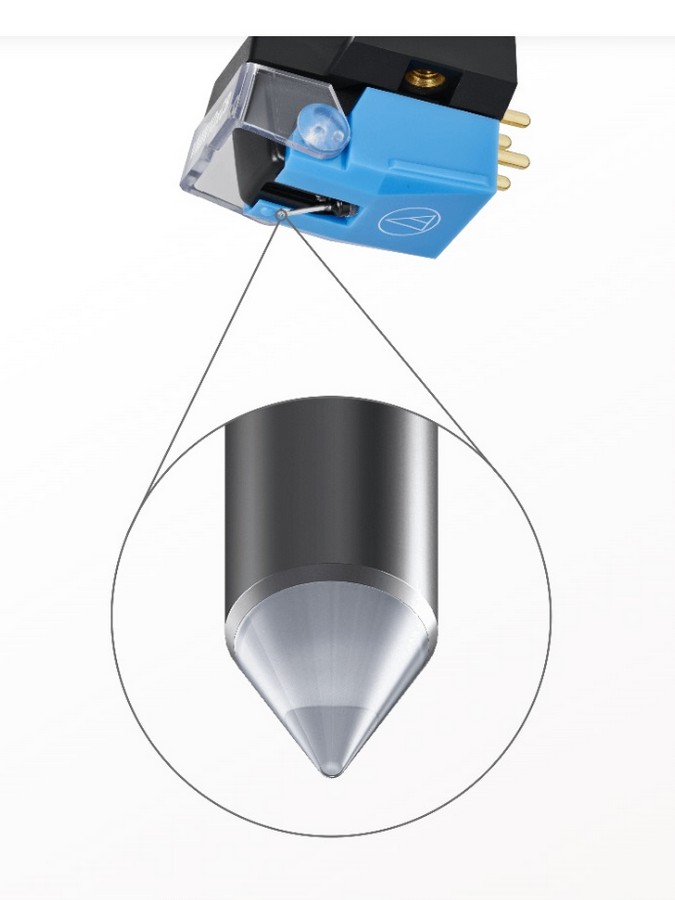

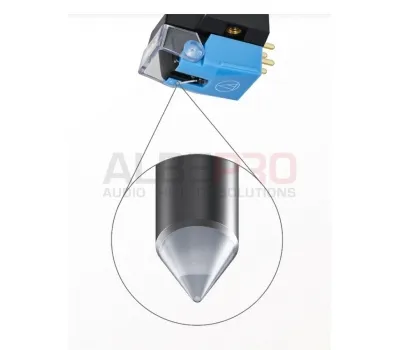

Conical stylus for accurate tracking and reliable sound reproduction.
-
Aluminum cantilever for quick response and excellent groove tracking, delivering clear, detailed sound.
-
Durable polymer housing that minimizes unwanted vibrations for a cleaner sound.
The AT-VM510xCB is compatible with most turntables and amplifiers, so you can start enjoying your favorite vinyl records right away. Whether you are an experienced audiophile or just starting your vinyl collection, this cartridge provides exceptional performance with every playback.
Technical Specifications:
-
Type: MM (Moving Magnet)
-
Stylus Construction: Conical, bonded
-
Stylus Pressure: 2.0 g (standard)
-
Cantilever: Aluminum tube
-
Frequency Response: 20 Hz – 20.000 Hz
-
Output Voltage: 5.0 mV
-
Harmonic Distortion: ≤ 0.1%
-
Channel Separation: ≥ 24 dB (1 kHz)
Replacement Needles for the AT-VMx Series
The AT-VMx series offers various replacement needles that you can use to fine-tune the sound of your turntable. Here are some replacement needles compatible with the AT-VM510xCB:
-
AT-VMN10xCB – Conical, bonded, aluminum cantilever
-
AT-VMN20xEB – Elliptical, bonded, aluminum cantilever
-
AT-VMN30xEN – Elliptical, nude, aluminum cantilever
-
AT-VMN40xML – Microlinear, nude, aluminum cantilever
-
AT-VMN45xML – Microlinear, nude, boron cantilever
-
AT-VMN50xSH – Shibata, nude, boron cantilever
-
AT-VMN60xSL – Special Line Contact, nude, boron cantilever
Order the Audio-Technica AT-VM510xCB Today at ALBEPRO!
At ALBEPRO, we offer a wide range of Audio-Technica products and help you find the right replacement stylus for your turntable. Enjoy expert advice, fast delivery, and the best customer service.
Order the Audio-Technica AT-VM510xCB now and experience the difference in sound quality!
Specs
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20 to 20,000 Hz |
| Channel Separation | 24 dB (1 kHz) |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force | 1.8 to 2.2 g (2.0 g standard) |
| Recommended Load Impedance | 47 k ohms |
| Coil Impedance | 3.2 k ohms (1 kHz) |
| DC Resistance | 750 ohms |
| Coil Inductance | 480 mH (1 kHz) |
| Output Voltage | 5.0 mV (1 kHz, 5 cm/sec.) |
| Output Balance | 1.5 dB (1 kHz) |
| Cantilever | Aluminium pipe |
| Static Compliance | 23 × 10-6 cm/dyne |
| Dynamic Compliance | 7 × 10-6 cm/dyne (100 Hz) |
| Dimensions | 28.0 mm (1.1”) × 18.3 mm (0.72”) × 17.6 mm (0.69”) (H × W × D) |
| Accessories Included | Cartridge installation screws** (M2.6) (10.0 mm (0.39”) × 2, 8.0 mm (0.31”) × 2, 5.0 mm (0.20”) × 2), Washer × 2 |
| Threaded Hole | M2.6 × 2 |
| Recommended Load Capacitance | 150 to 250 pF |
| Replacement Stylus | AT-VMN10xCB (sold separately)* |
| Stylus Curvature Radius | 0.6 mil |
| Type | VM |
| Weight | 7.2 g (0.25 oz) |
| Notes | *The replacement stylus of this product is used for AT-VMx series products. In this series, we offer replacement styli with different stylus tip structures and point shapes. **Cartridge installation screws (5.0 mm (0.20”)) x 2 are used to secure the cartridge in the box at the time of purchase. Be sure to keep and not lose these after removing the cartridge from the box. For product improvement, the product is subject to modification without notice |
