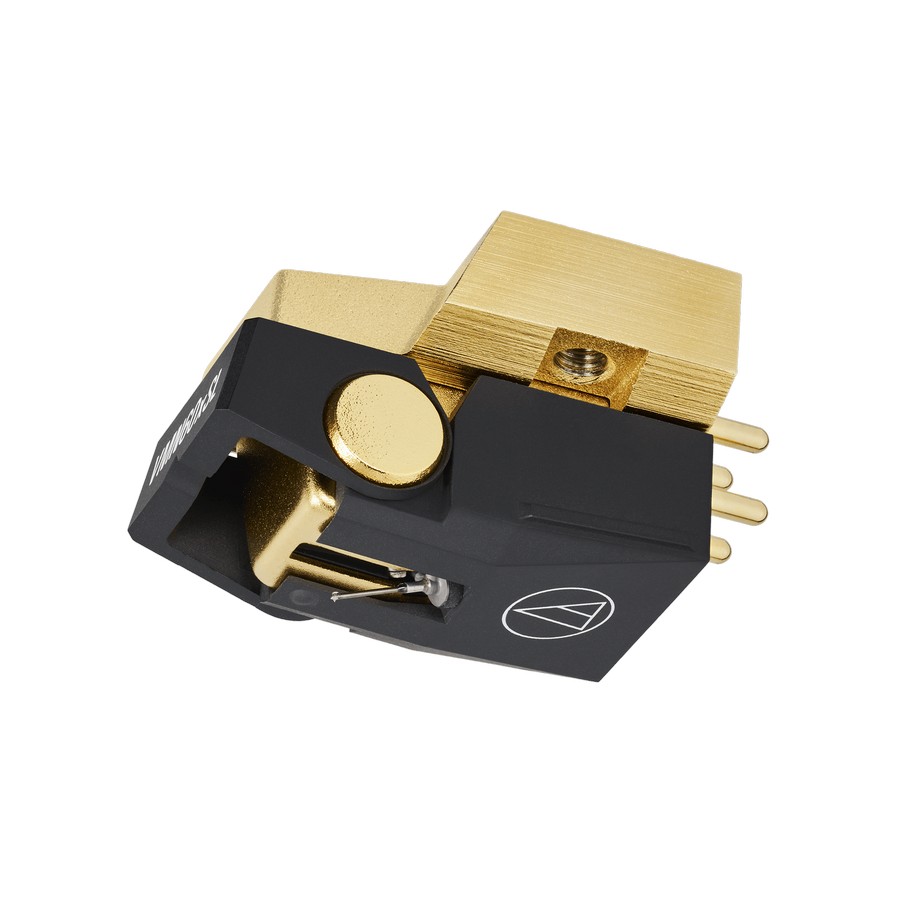

Audio-Technica AT-VM760xSL - Dual Moving Magnet (MM) Cartridge
The Audio-Technica AT-VM760xSL is a premium phono cartridge that excels in clarity, detail, and dynamics. This advanced Dual Moving Magnet (MM) design redefines what it means to listen to vinyl, providing an unparalleled reproduction of musical nuances. The new design of the AT-VMx series delivers a wider soundstage, full of warmth and realism.
With careful alignment to the vinyl cutting head, the AT-VM760xSL offers impressive channel separation and an extended frequency response, allowing the various elements of your music to come to life in brilliant detail. This results in rich, layered sound with a sharp focus on every musical detail in both the left and right channels.

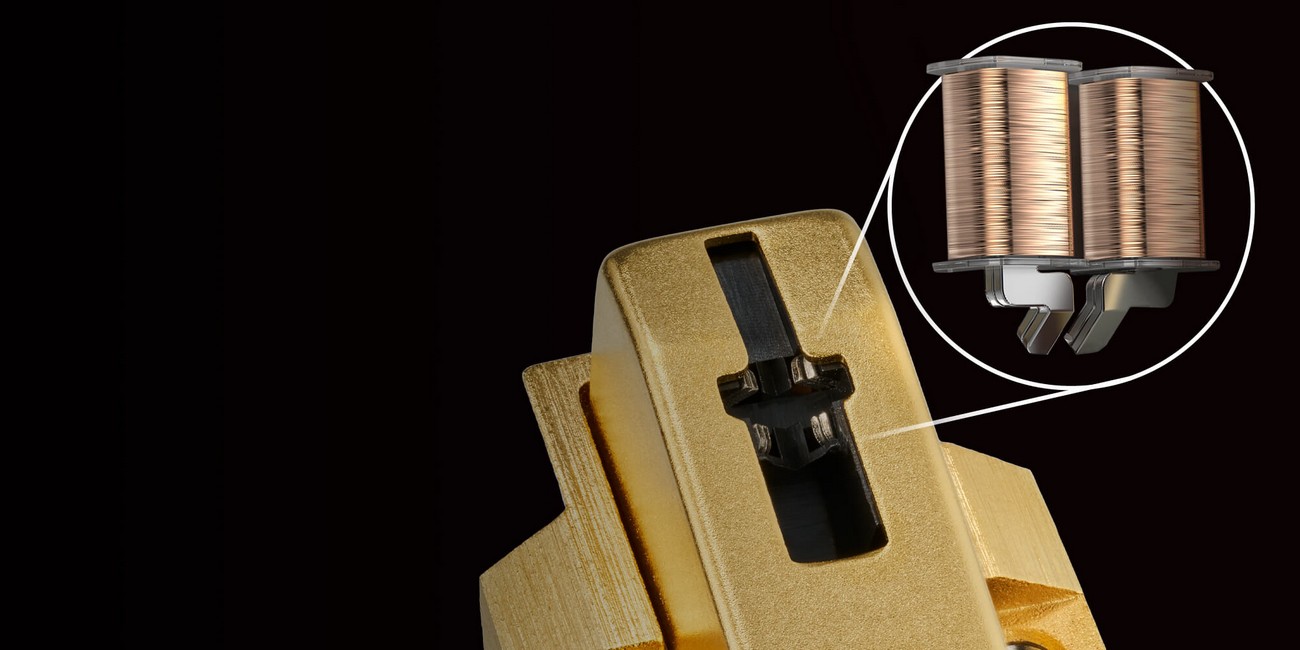

The AT-VMx series features the upgraded Dual Moving Magnet structure and a paratoroidal coil, where each channel has two coils stacked for increased efficiency and remarkable sound reproduction. A centrally placed shielding plate reduces crosstalk and ensures a clear stereo image. The use of PCUHD® copper wire (Ultra High Definition Copper) improves audio performance, resulting in a more detailed and refined sound.
One of the most notable features of the AT-VM760xSL is the improved response due to the reduced number of coil windings, which allows for faster signal transmission and a more dynamic, lifelike music experience. This makes the AT-VM760xSL particularly well-suited for audiophiles who want to enjoy a crisp and clear reproduction of fast musical passages.

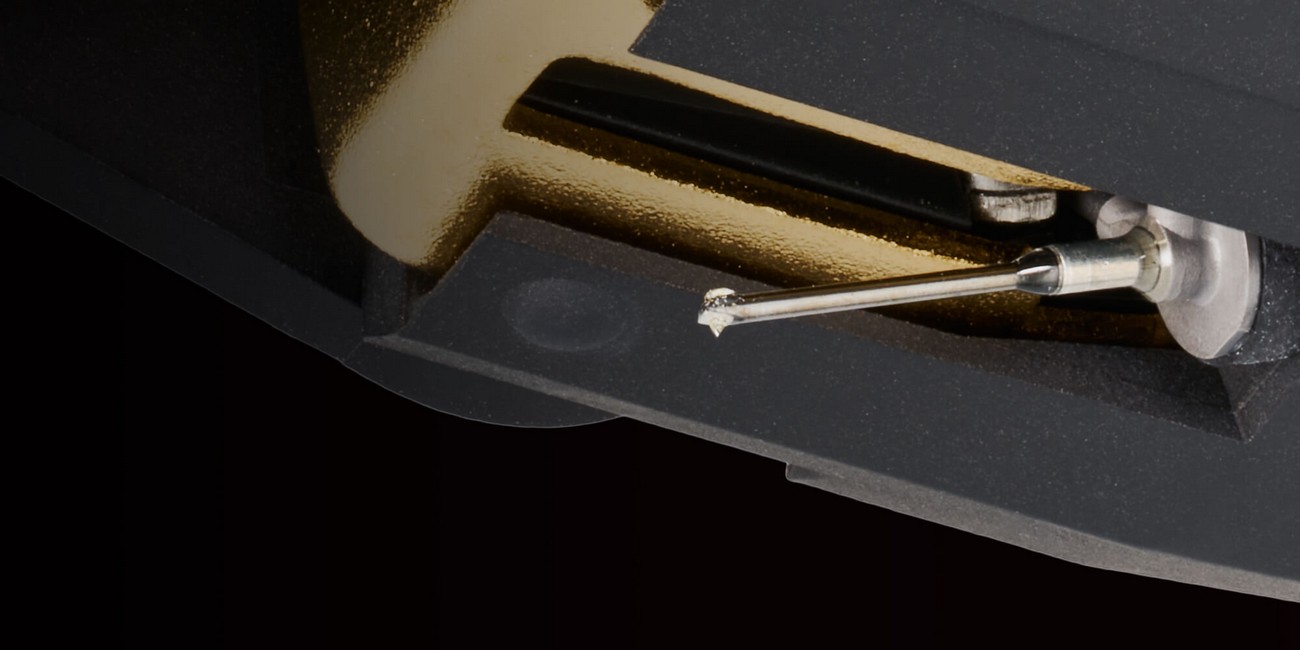

The ultra-light special line contact stylus tracks the grooves of the record with unprecedented precision, minimizing wear and reproducing the music as faithfully as possible. In addition, the solid boron cantilever contributes to faster signal transfer—nearly 2.5 times faster than previous models—ensuring a more accurate and detailed music reproduction.
The robust die-cast aluminum housing of the cartridge is designed for easy installation with a screw mount, ideal for high-end turntables. Thanks to the V-shaped cutout in the protective cover, it is easy to position the stylus precisely on the record, allowing for perfect alignment of your listening experience.
Because all the elements in the AT-VMx series share the same housing and the stylus can be easily removed, you can experiment with various AT-VMx replacement styli and explore different sound characteristics. This offers the flexibility to tailor the sound to your personal preferences.
Available replacement styli for the AT-VMx series:
-
AT-VMN10xCB – Conical, bonded, aluminum cantilever
-
AT-VMN20xEB – Elliptical, bonded, aluminum cantilever
-
AT-VMN30xEN – Elliptical, nude, aluminum cantilever
-
AT-VMN40xML – Microlinear, nude, aluminum cantilever
-
AT-VMN45xML – Microlinear, nude, boron cantilever
-
AT-VMN50xSH – Shibata, nude, boron cantilever
-
AT-VMN60xSL – Special line contact, nude, boron cantilever
At ALBEPRO, we offer not only a wide range of Audio-Technica products but also ensure that you find the right replacement stylus for your specific needs. Whether you're looking for a new stylus or want to optimize your turntable, you can count on expert advice and fast delivery from ALBEPRO.
Order your AT-VMx stylus today at ALBEPRO and experience the difference in sound quality!
Specs
Cartridge & Stylus | |
---|---|
Frequency Response | 20 to 30,000 Hz |
Channel Separation | 26 dB (1 kHz) |
Vertical Tracking Angle | 20° |
Tracking Force | 1.8 to 2.2 g (2.0 g standard) |
Stylus Construction | Special line contact |
Recommended Load Impedance | 47 k ohms |
Coil Impedance | 3.2 k ohms (1 kHz) |
DC Resistance | 750 ohms |
Coil Inductance | 480 mH (1 kHz) |
Output Voltage | 3.7 mV (1 kHz, 5 cm/sec.) |
Output Balance | 1.0 dB (1 kHz) |
Cantilever | 0.28 mm (0.011”) diameter solid boron |
Static Compliance | 17.5 × 10-6 cm/dyne |
Dynamic Compliance | 7 × 10-6 cm/dyne (100 Hz) |
Dimensions | 29.0 mm (1.1”) × 18.3 mm (0.72”) × 17.5 mm (0.69”) (H × W × D) |

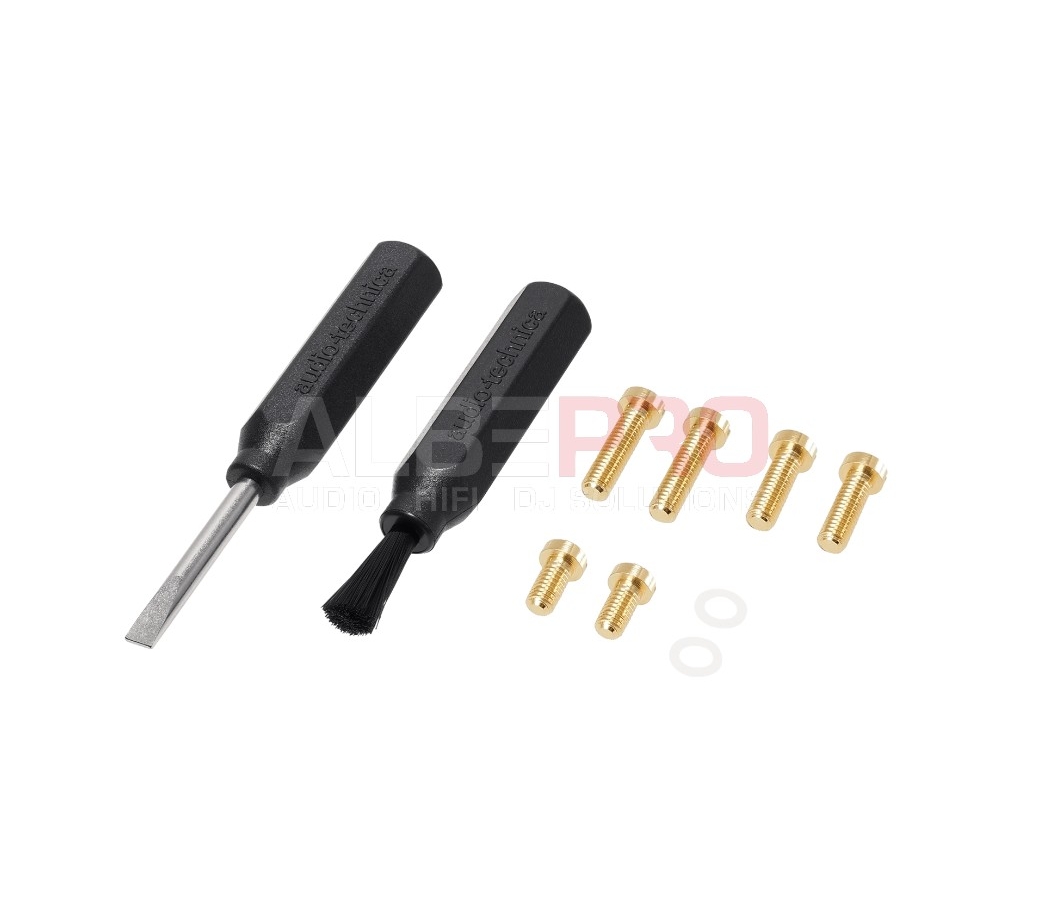

Accessories Included | ・Cartridge installation screw** (M2.6) (10.0 mm (0.39”) × 2, 8.0 mm (0.31”) × 2, 5.0 mm (0.20”) × 2), Washer × 2, Non-magnetic screwdriver, Brush |
Threaded Hole | M2.6 × 2 |
Recommended Load Capacitance | 150 to 250 pF |
Replacement Stylus | AT-VMN60xSL* (sold separately) |
Stylus Curvature Radius | 1.5 × 0.28 mil |
Type | VM |
Weight | 8.8 g (0.31 oz) |
Notes | *The replacement stylus of this product is used for AT-VMx series products. In this series, we offer replacement styli with different stylus tip structures and point shapes. **Cartridge installation screws (5.0 mm (0.20”)) x 2 are used to secure the cartridge in the box at the time of purchase. Be sure to keep and not lose these after removing the cartridge from the box. For product improvement, the product is subject to modification without notice. |
