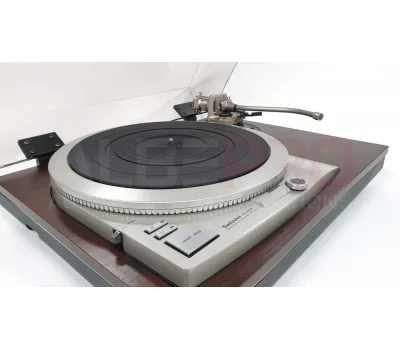

Technics SL-1025 Quarz Synthesizer Direct Drive High End Professional Turntable
Technics SP-25 Direct Drive system & EPA-B500 armbase & EPA-A501H Titanium Nitride tonearm
Completely overhauled by ALBEPRO
No expense has been spared for this revision.
The SP-25 direct drive system has been completely recapped, all electrolytic and polyester capacitors have been renewed, an absolute certainty against leaking capacitors.
Renewed power transistor for better stable voltage on the motherboard.
Completely new power supply, original Technics including PCB, transformer, glass fuses and EU power cord.

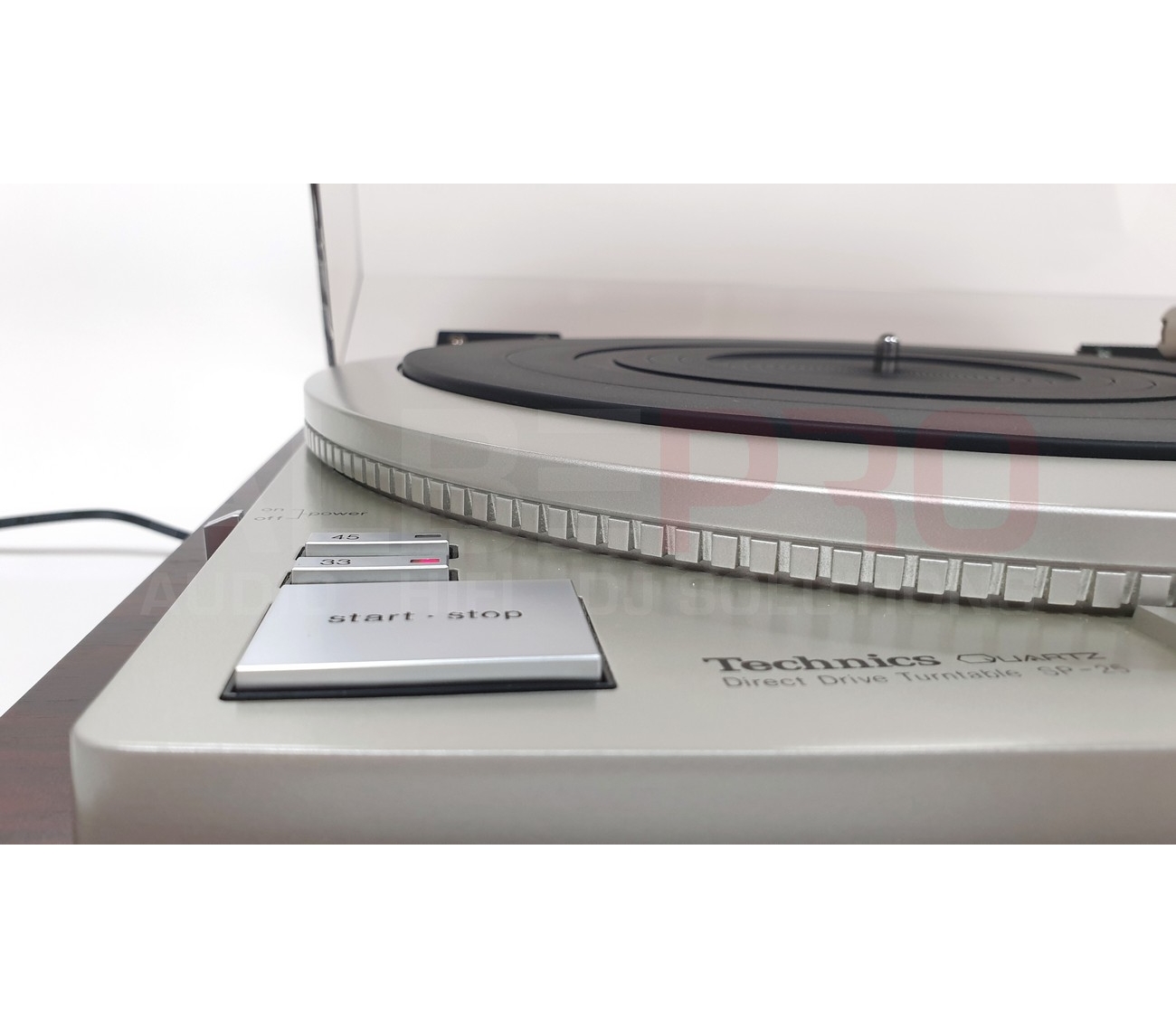

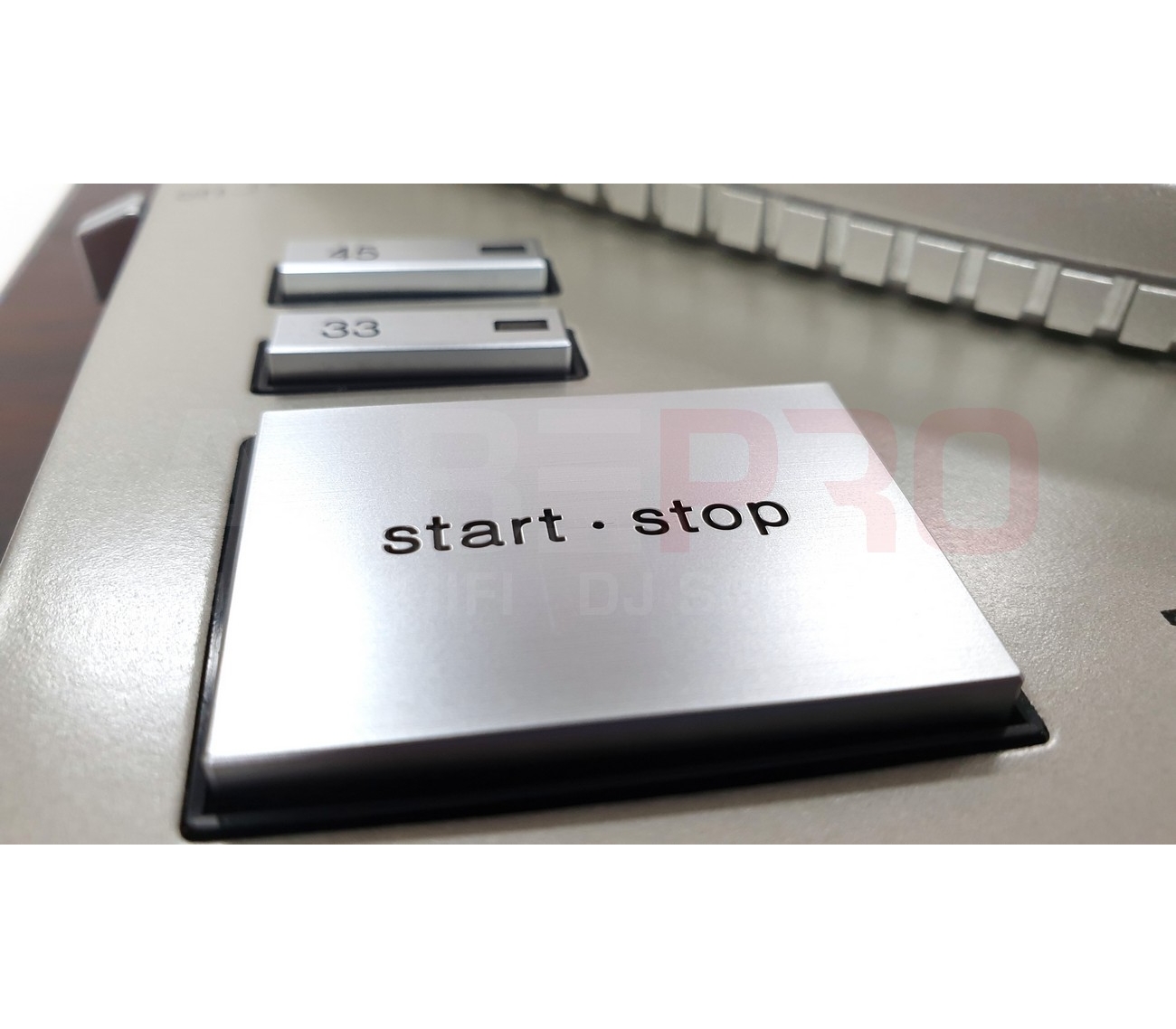

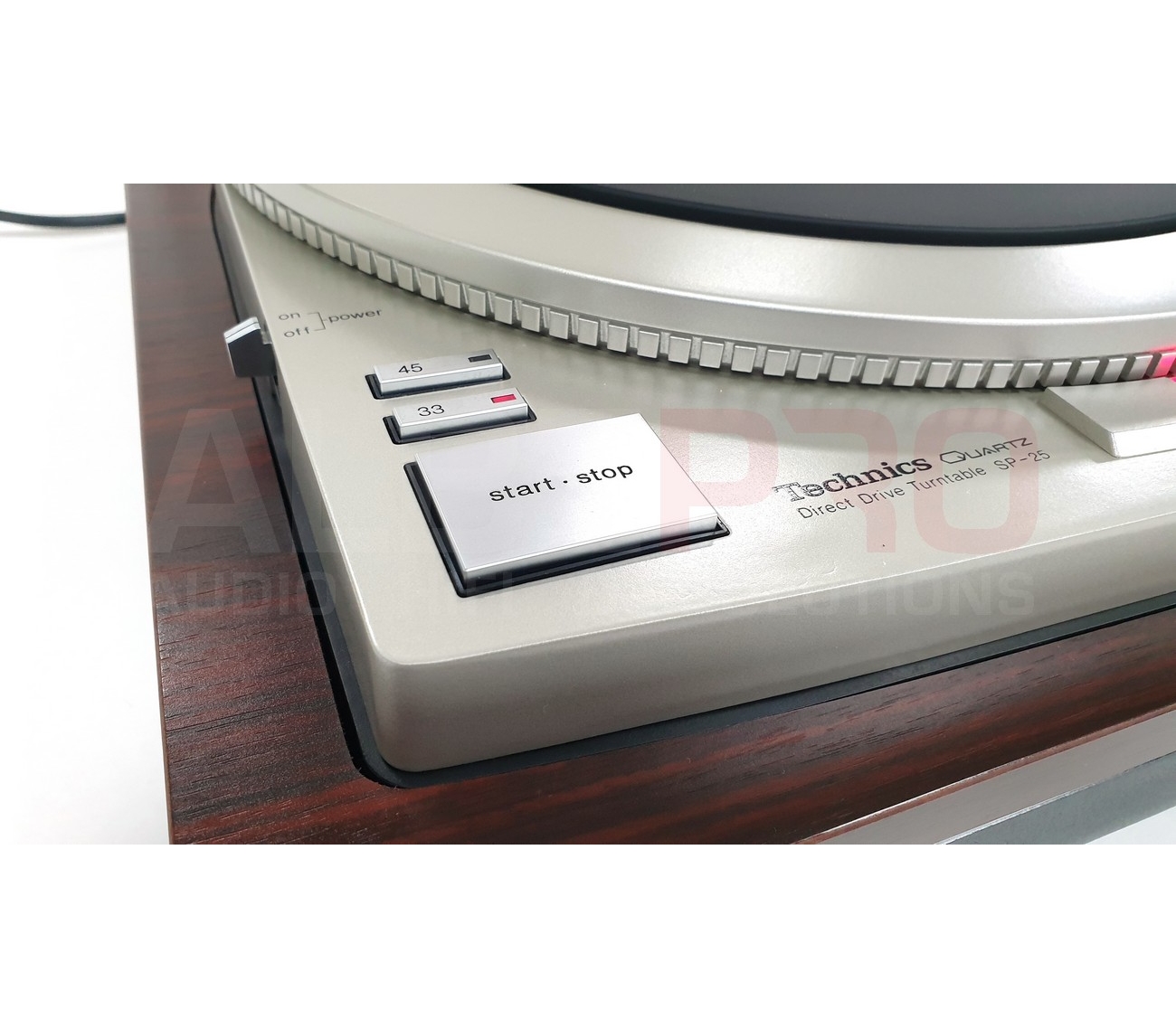

The micro switches of the start/stop, 33 and 45 rpm controls have been replaced by improved Top Actuated switches. For this, the complete unit has been disassembled and cleaned. The controls work optimally again, perhaps even better than ex-factory back then.
Tuning potentiometers for calibration have been renewed by high-quality Bourns control potentiometers.
Including new calibration in accordance with Technics specifications.

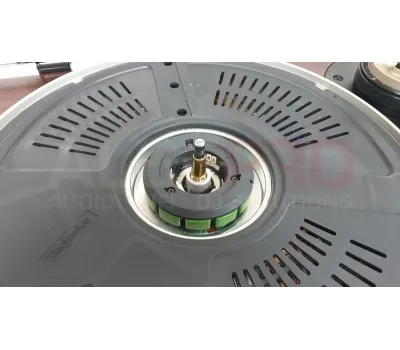

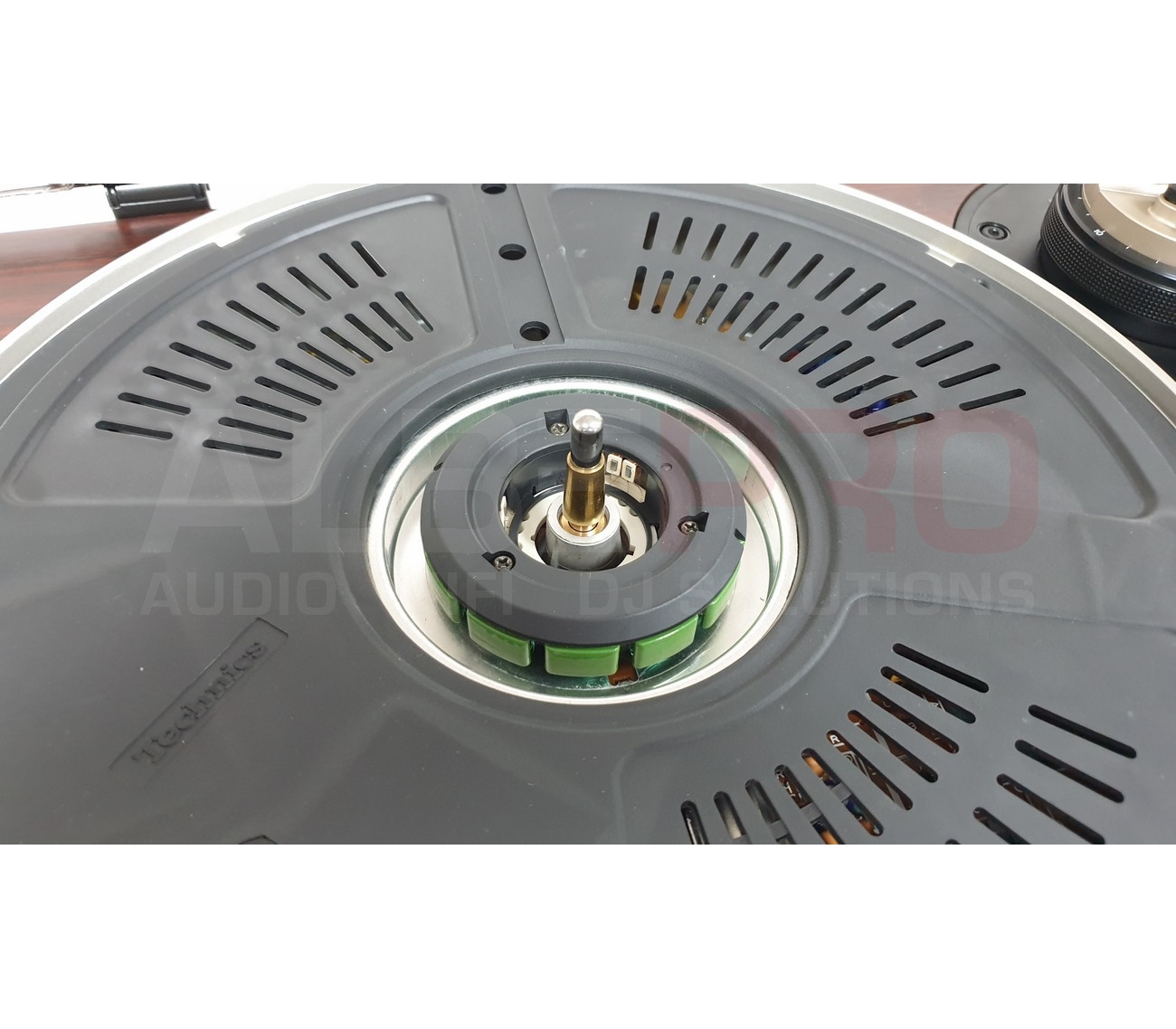

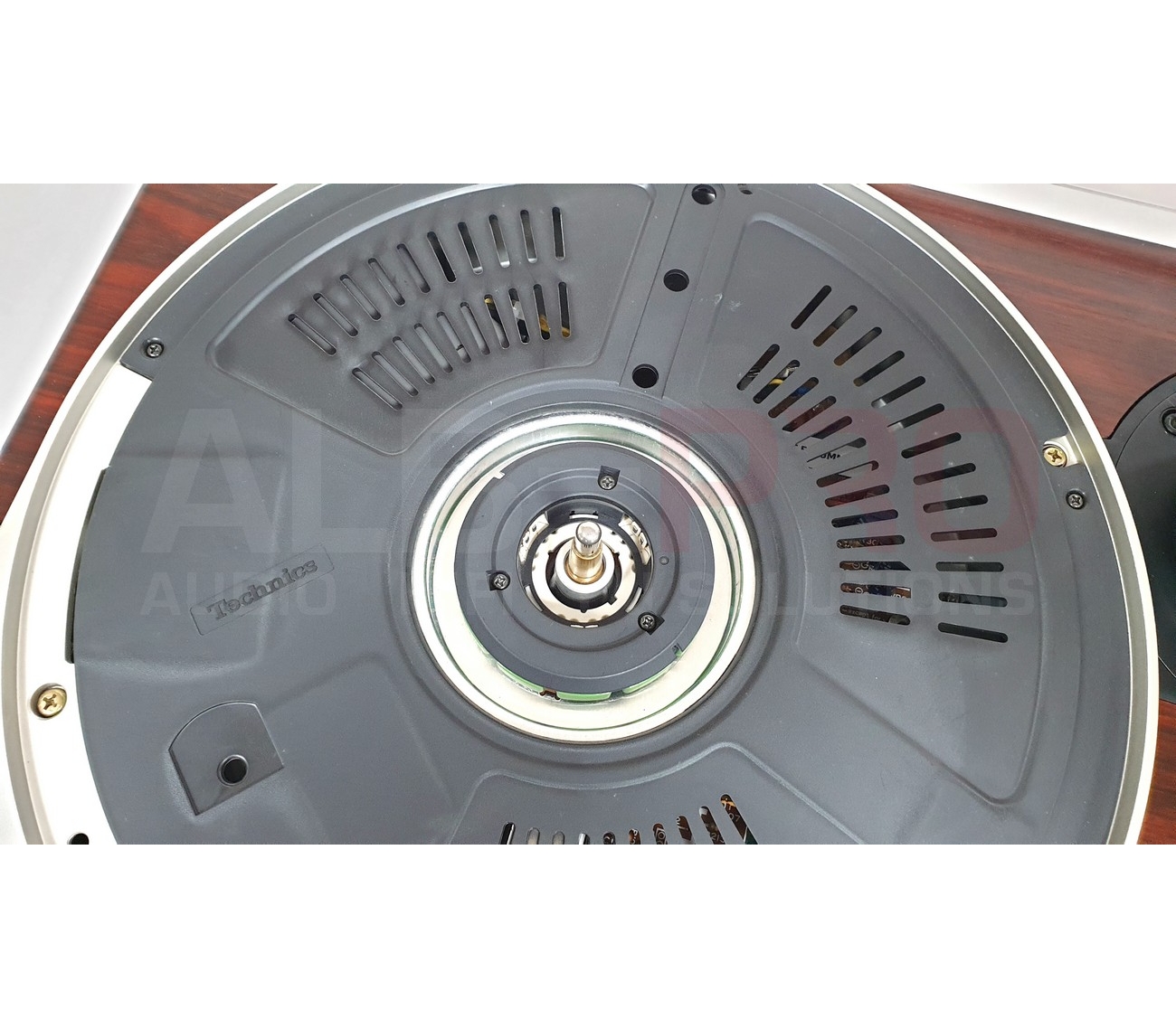

The bearing shaft was completely disassembled, pollution and old grease residues were cleaned, then the bearing shaft and bearing bush were polished.
Brass bearing bush and bearing housing have been checked whether they are still fixed, a common problem is that they can come apart.
Then the parts were lubricated with original Technics oil (this product is also in our program) and reassembled. Finally, the bearing shaft has been returned to SP-25, and as a finishing touch 3 drops of Technics oil in the shaft of the bearing shaft and the SP-25 is again up to date for 2000 playing hours!

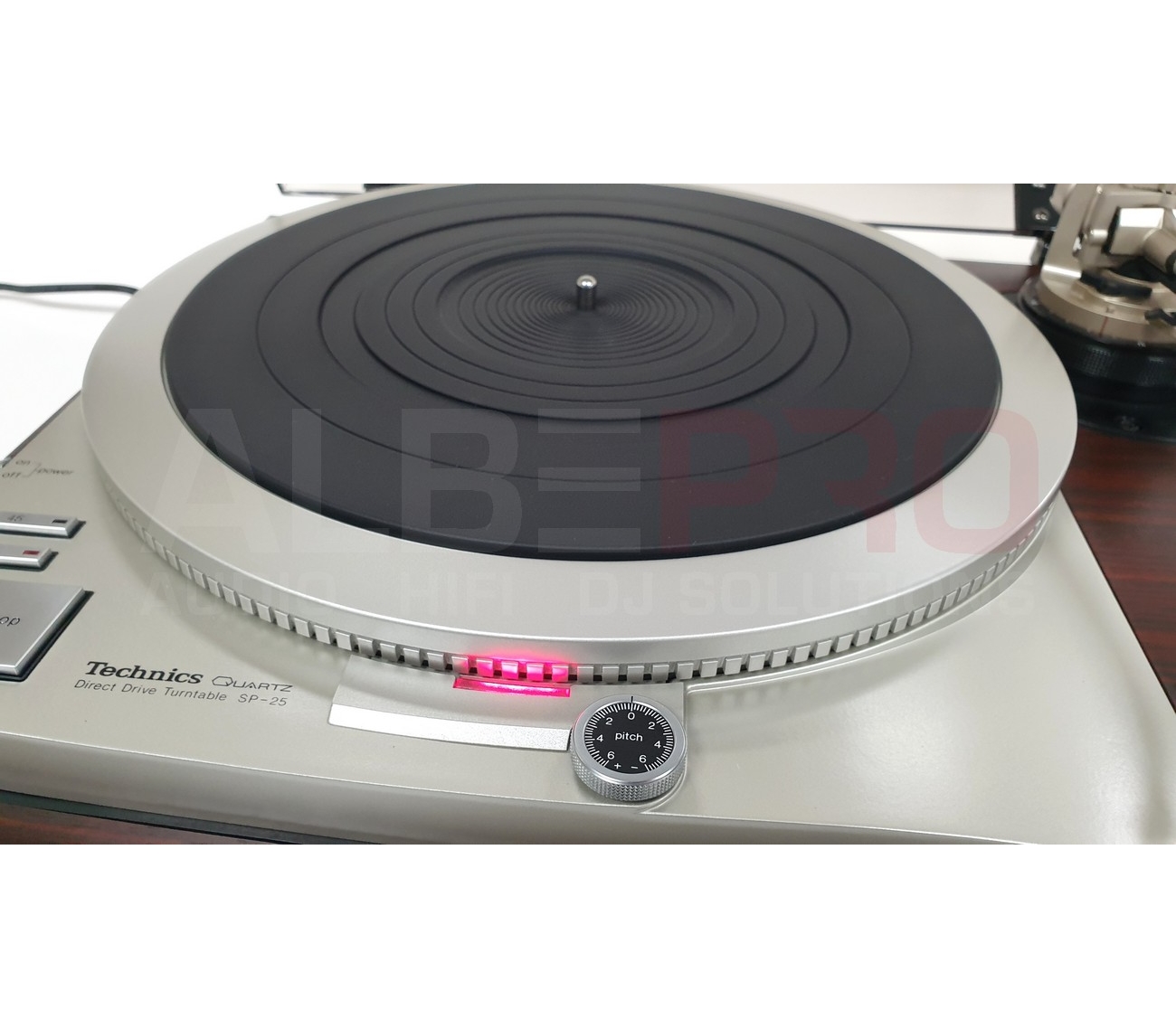

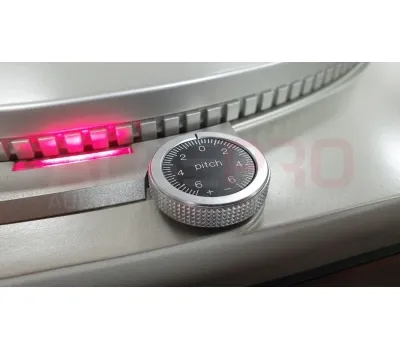

Ultrasonic cleaning of the +/-6% pitch potentiometer for accurate operation.

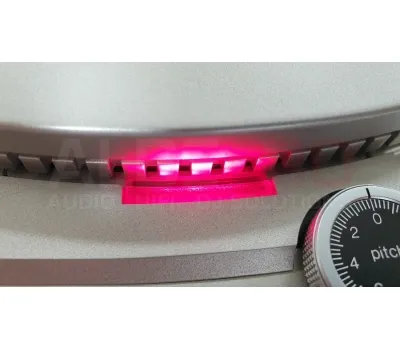

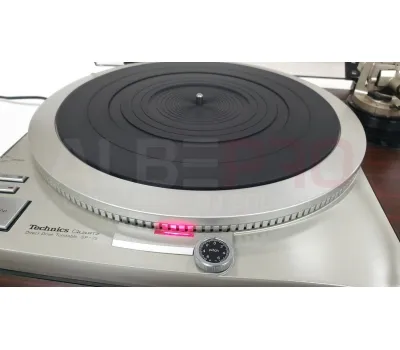

For this we had to completely disassemble this unit and of course everything was cleaned, the strobe LEDs burn sharply.

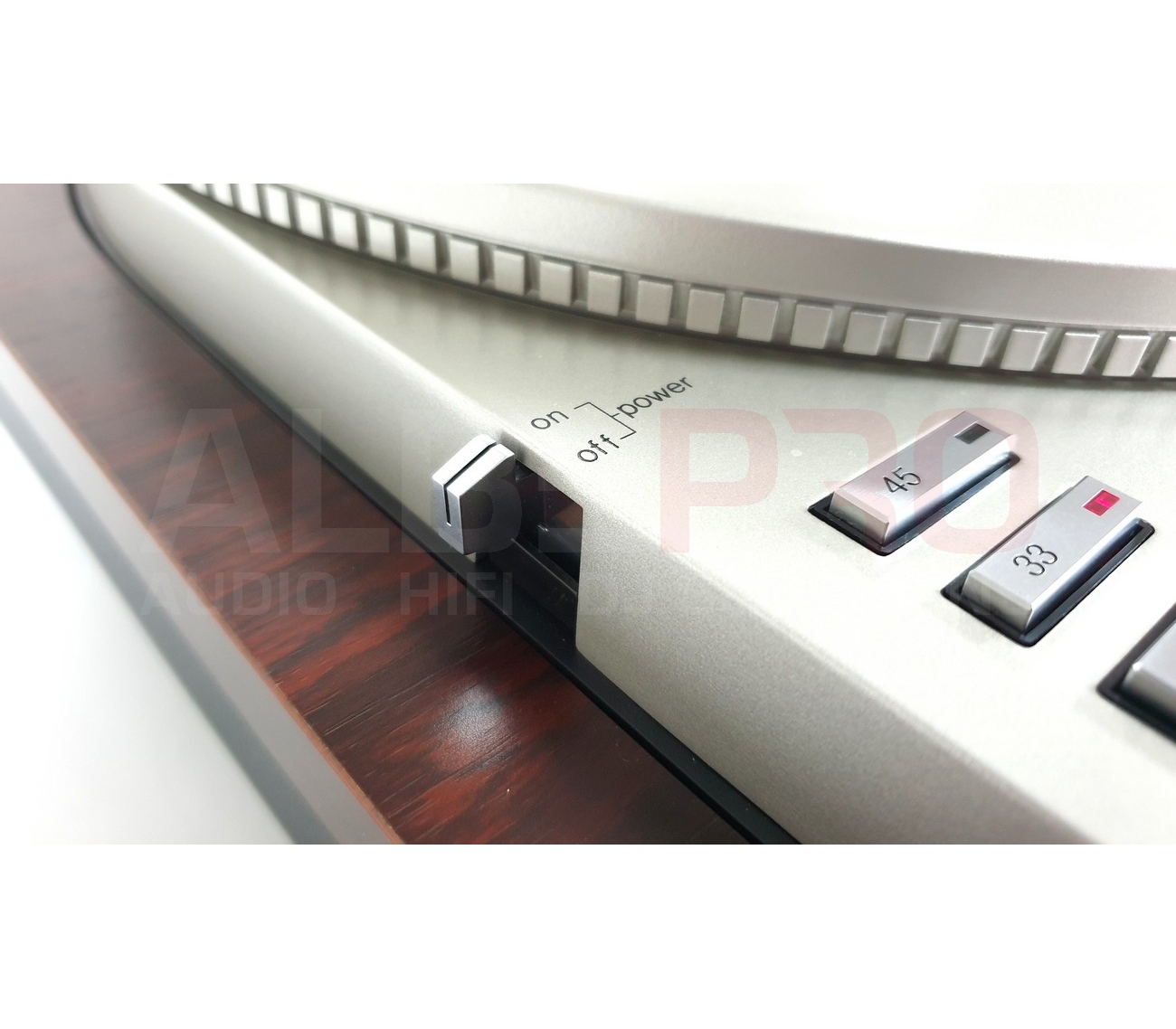

Mechanical operation of the on/off button completely disassembled, cleaned, lubricated and reassembled.
The SP-25 is completely disassembled, all parts have been intensively cleaned, no discoloration or contamination.

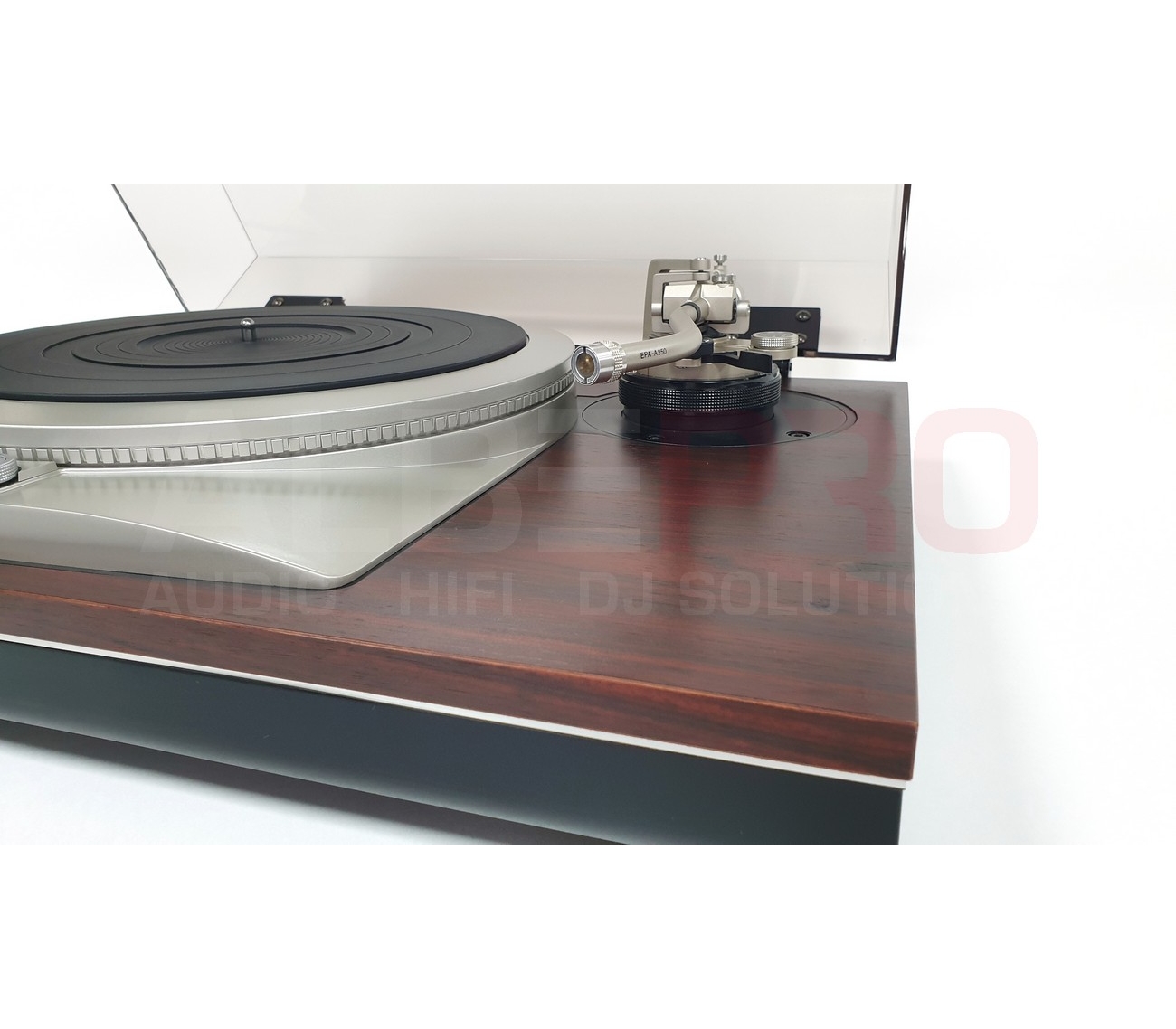

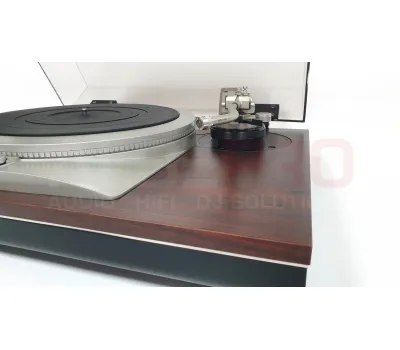

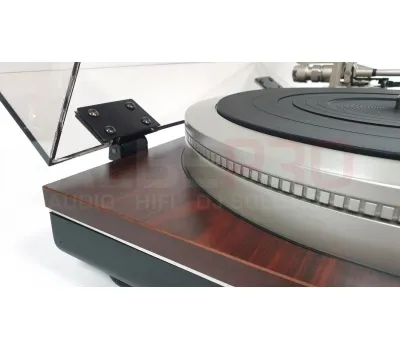

The case and veneer has been deep cleaned and looks clean and bright.
The front corner points on the left and right show slight wear, but do not give a negative result on the whole.
The EPA-B500 armbase & EPA-A501H Titanium Nitride tonearm is in mint condition.

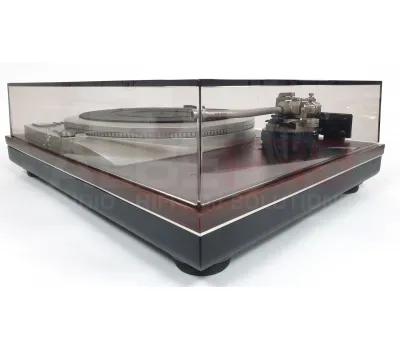

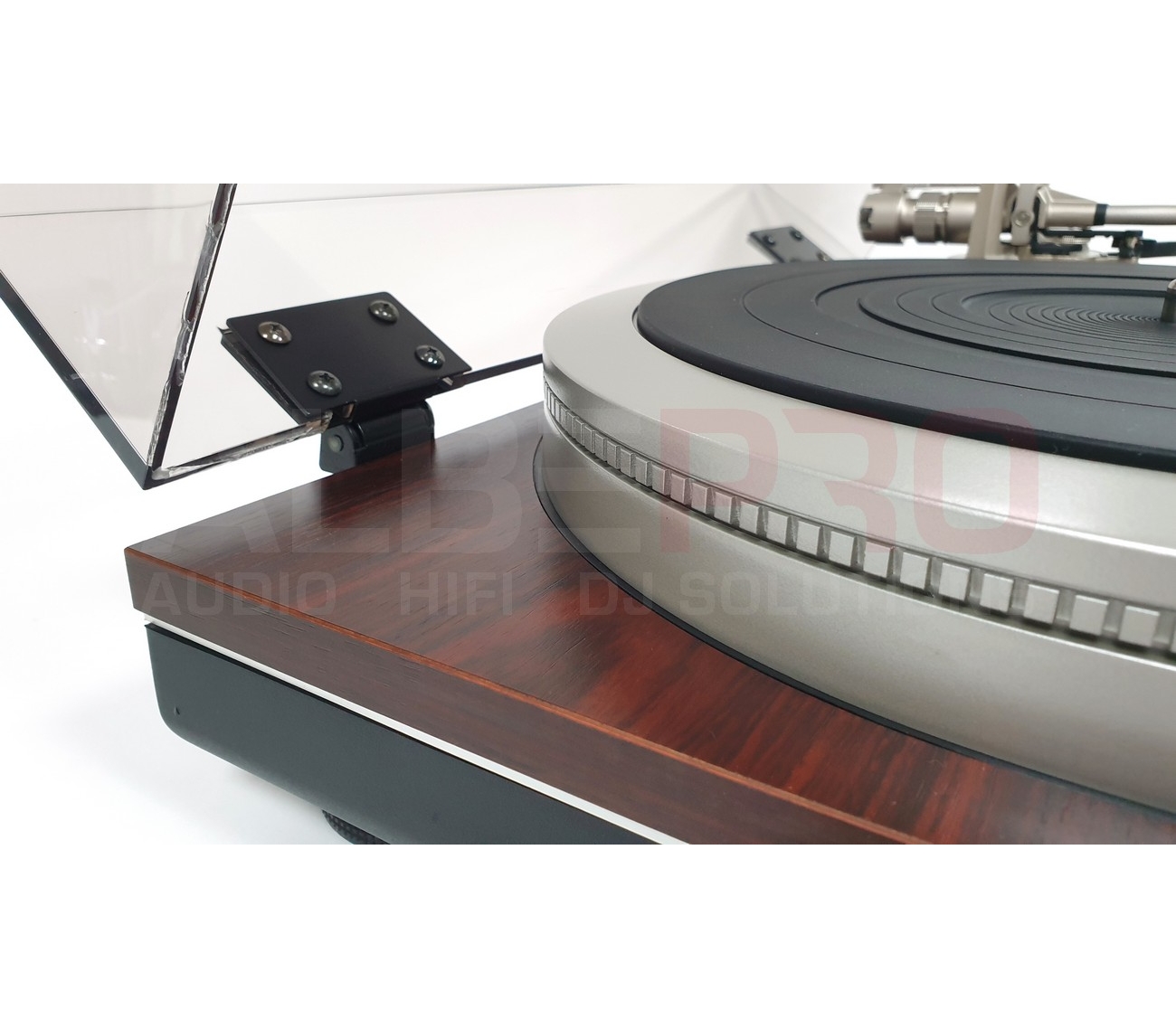

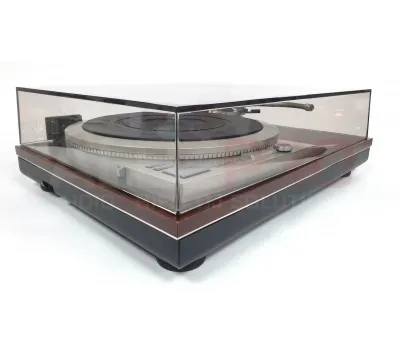

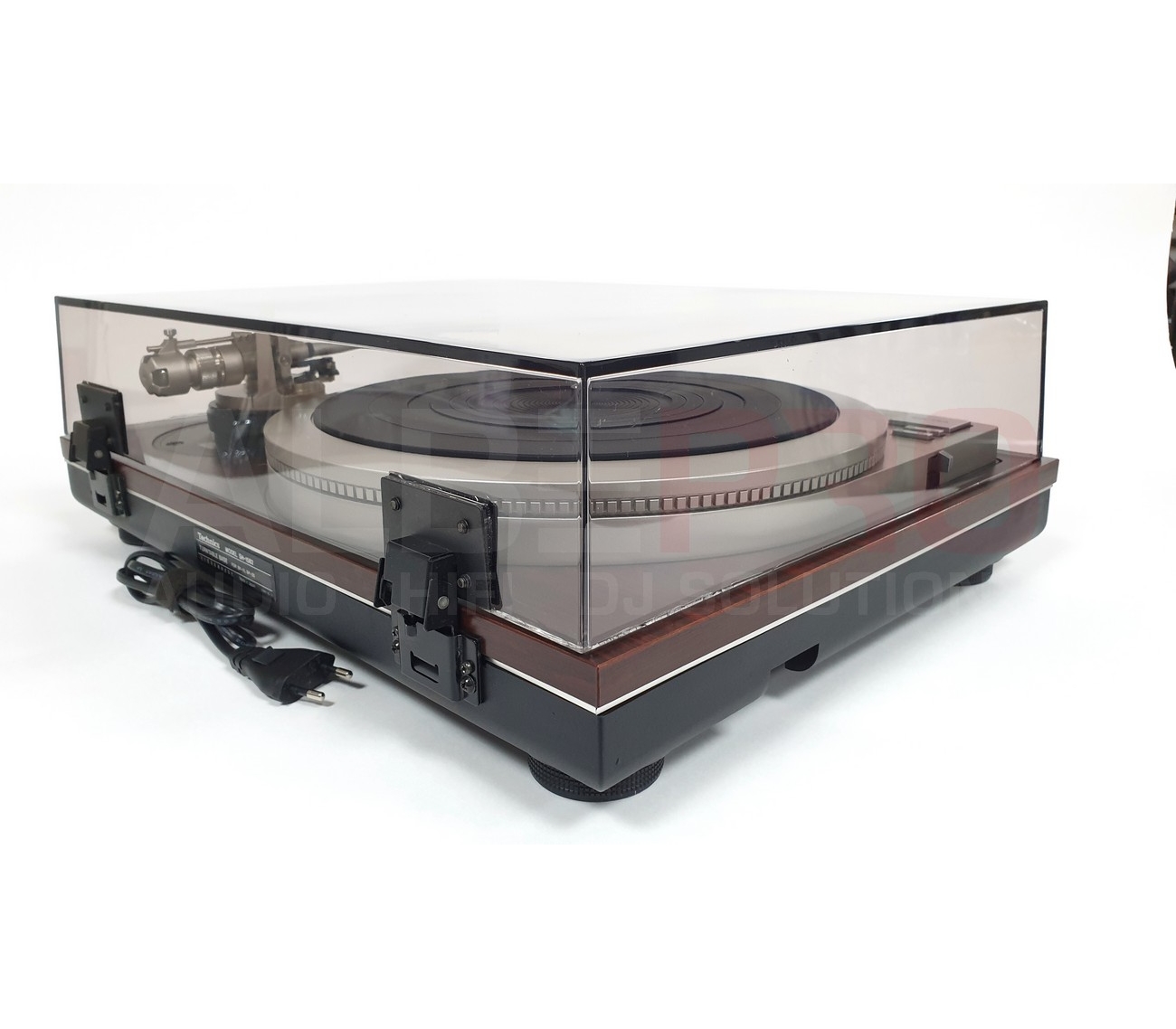

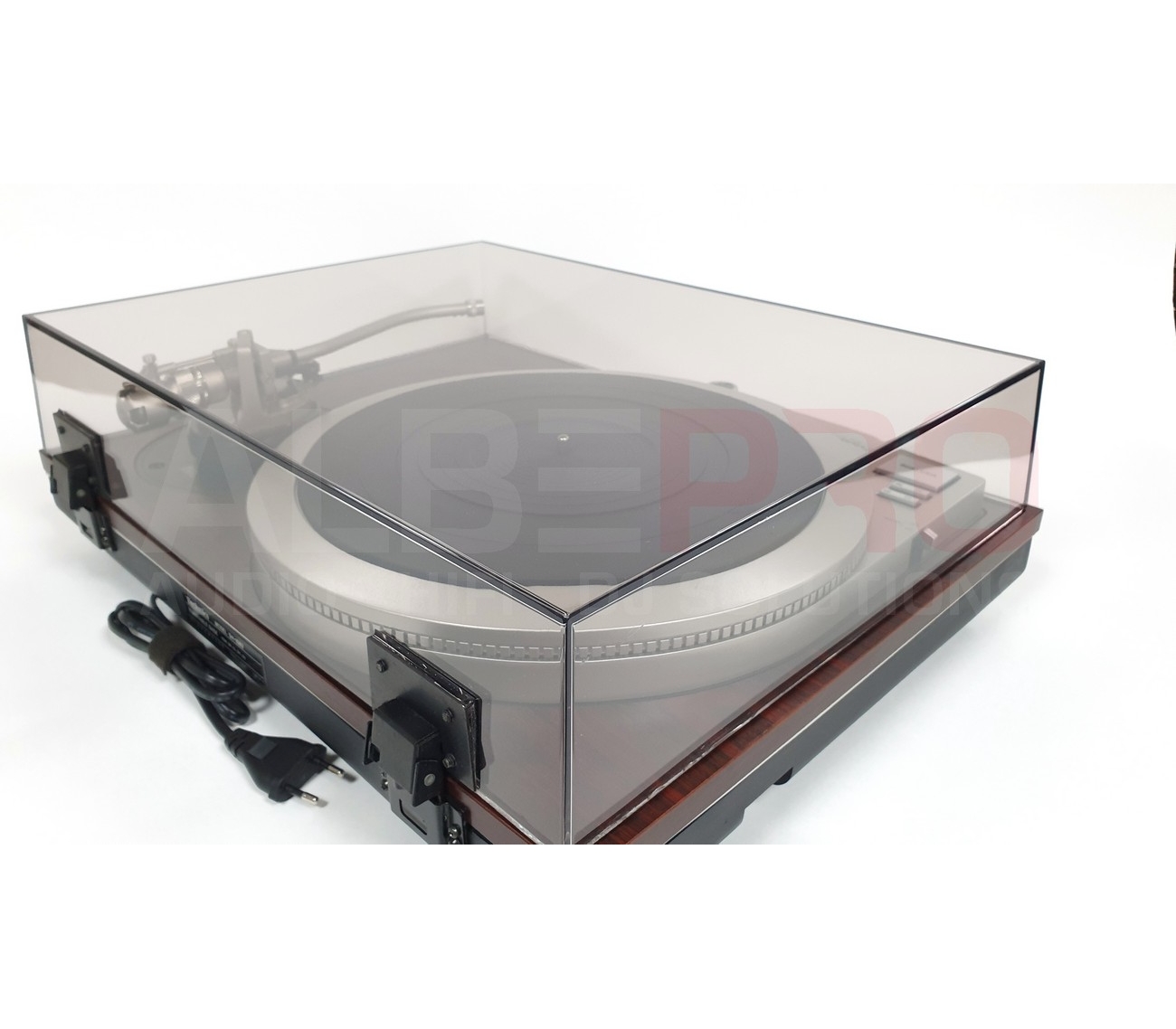

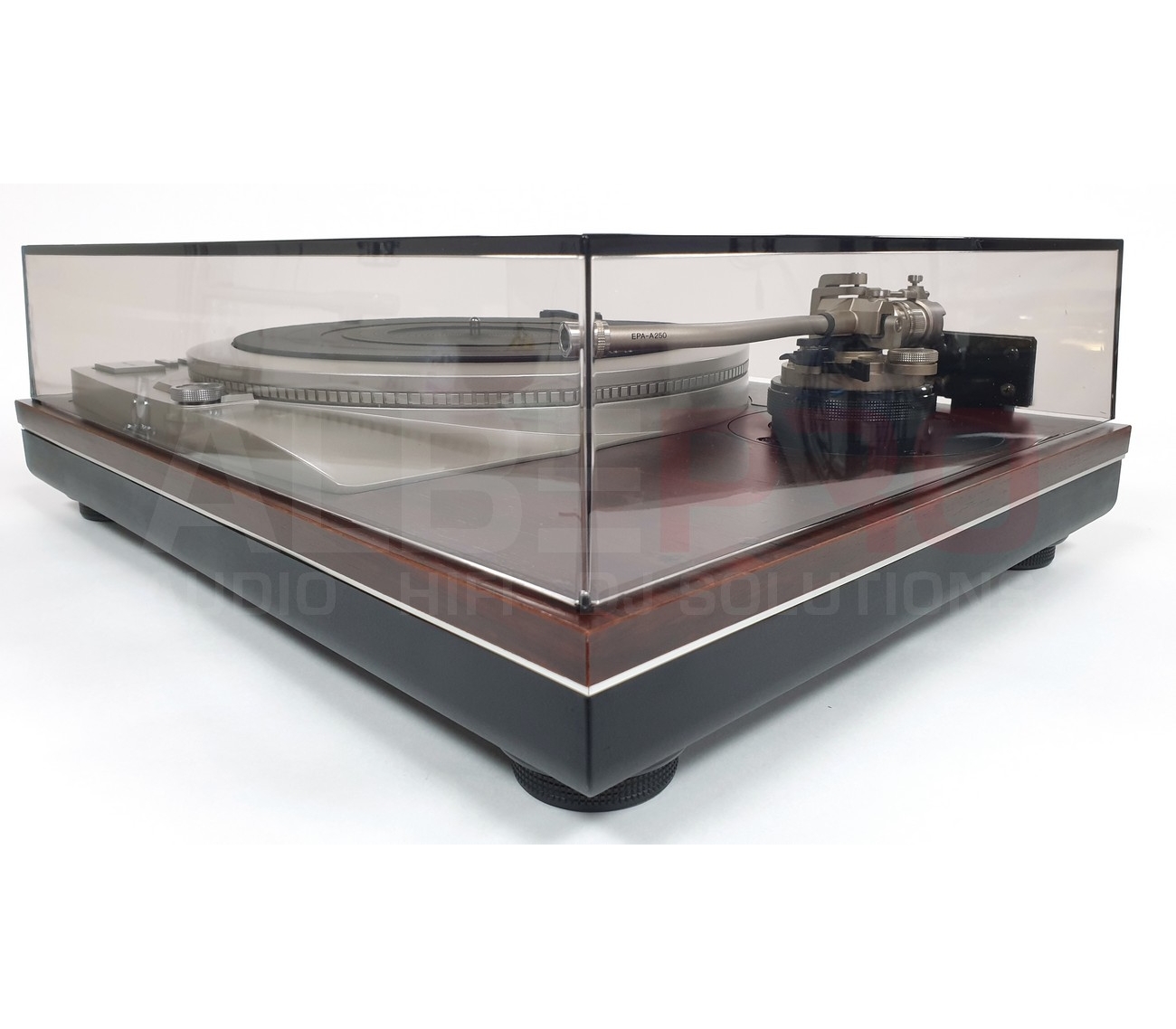

The dust cover is also in new condition.

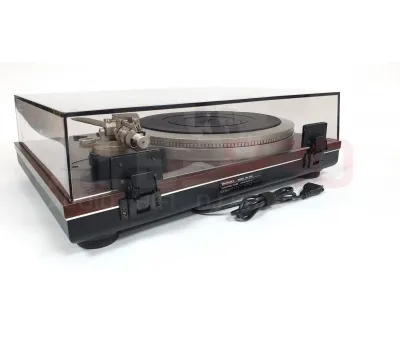

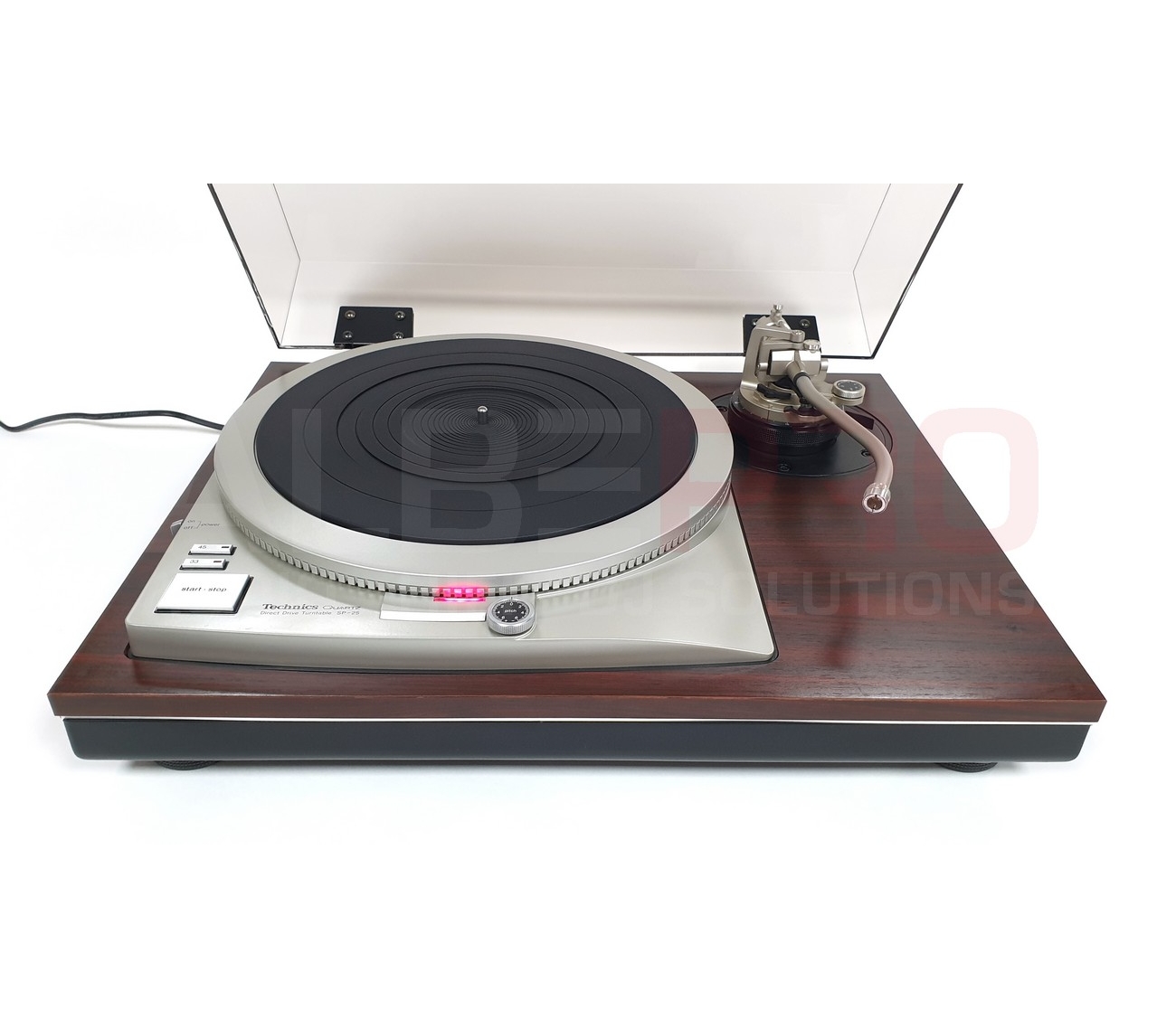

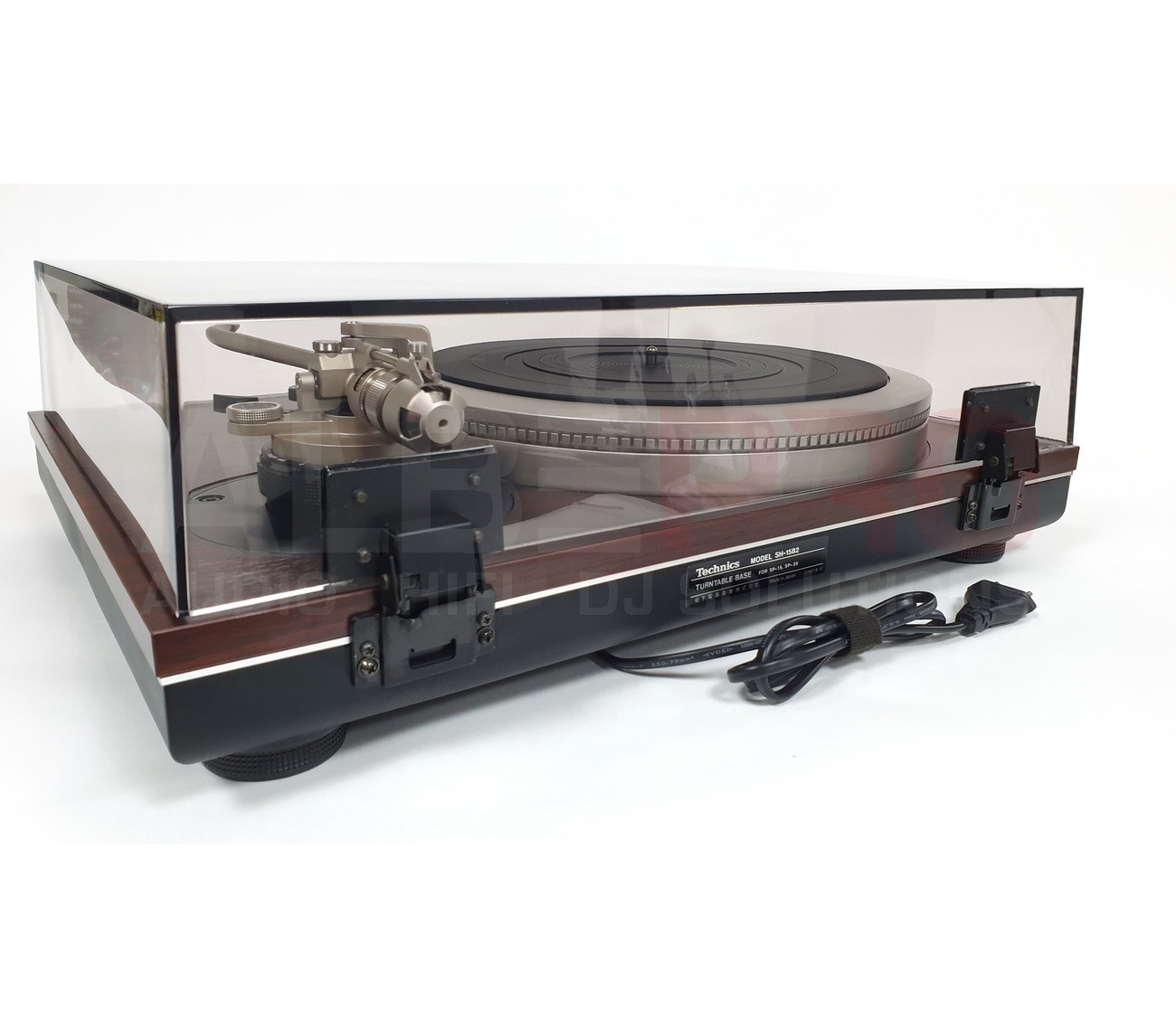

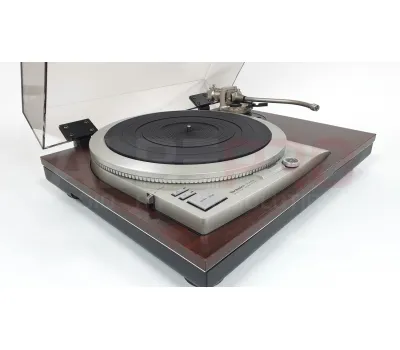

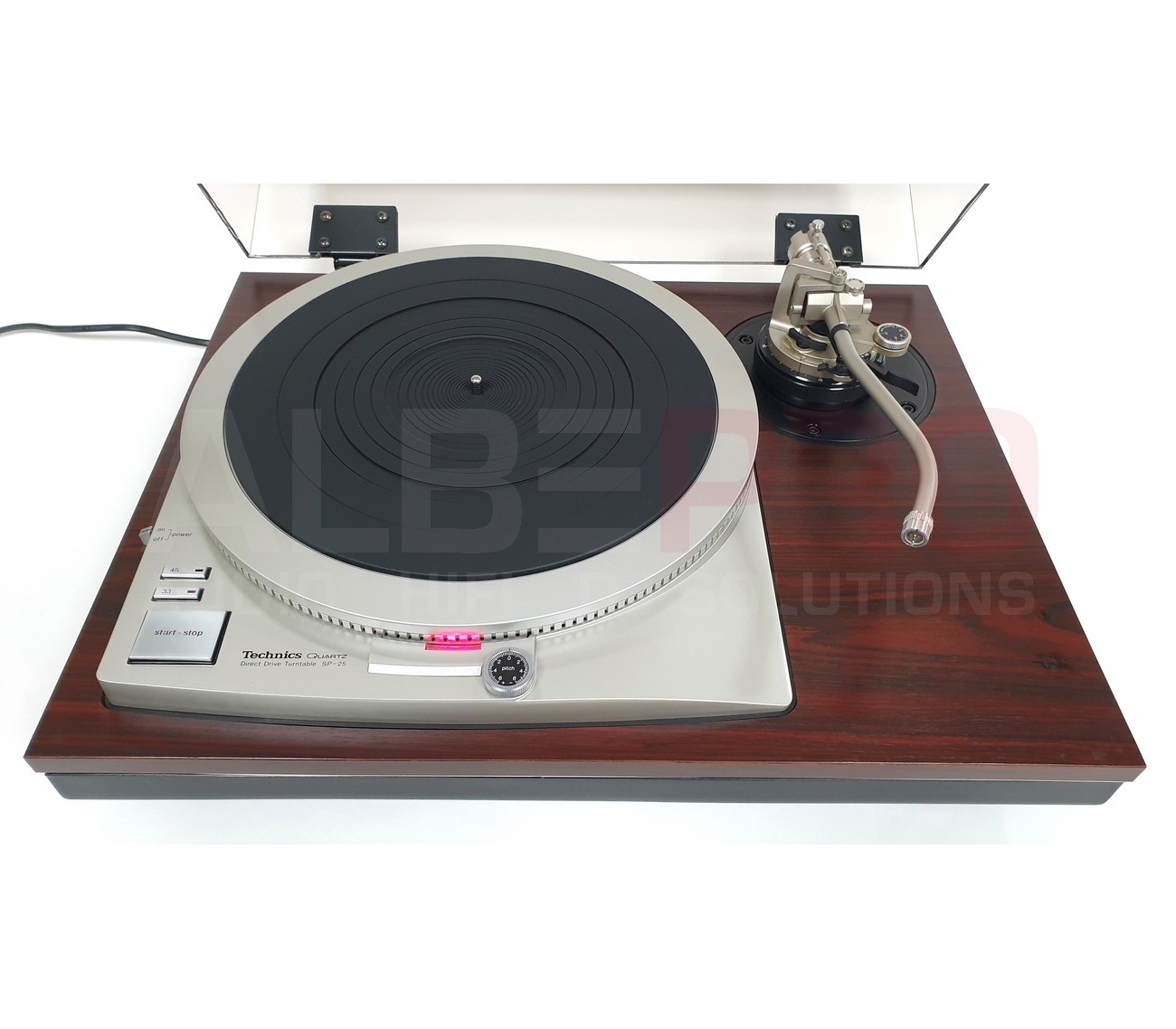

The Technics SL-1025 is a complete high-end turntable system consisting of the SP-25 direct drive system, a base, and a tonearm.
The direct drive turntable is quartz synthesized, with continuous, quartz controlled pitch variation (+/-6%).

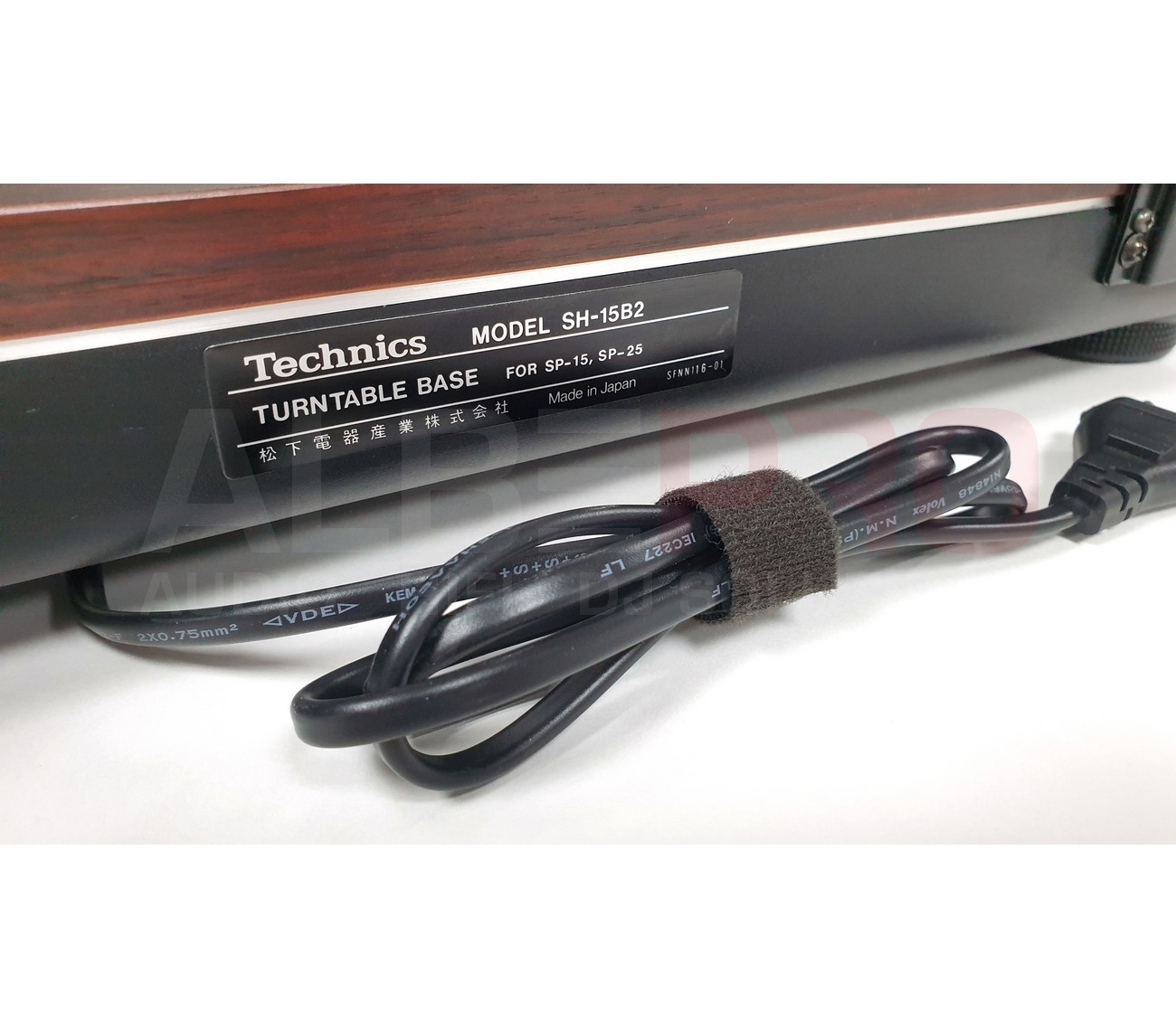

The base, made of one piece molded rubber, is both anti-resonant and acoustically deadened.

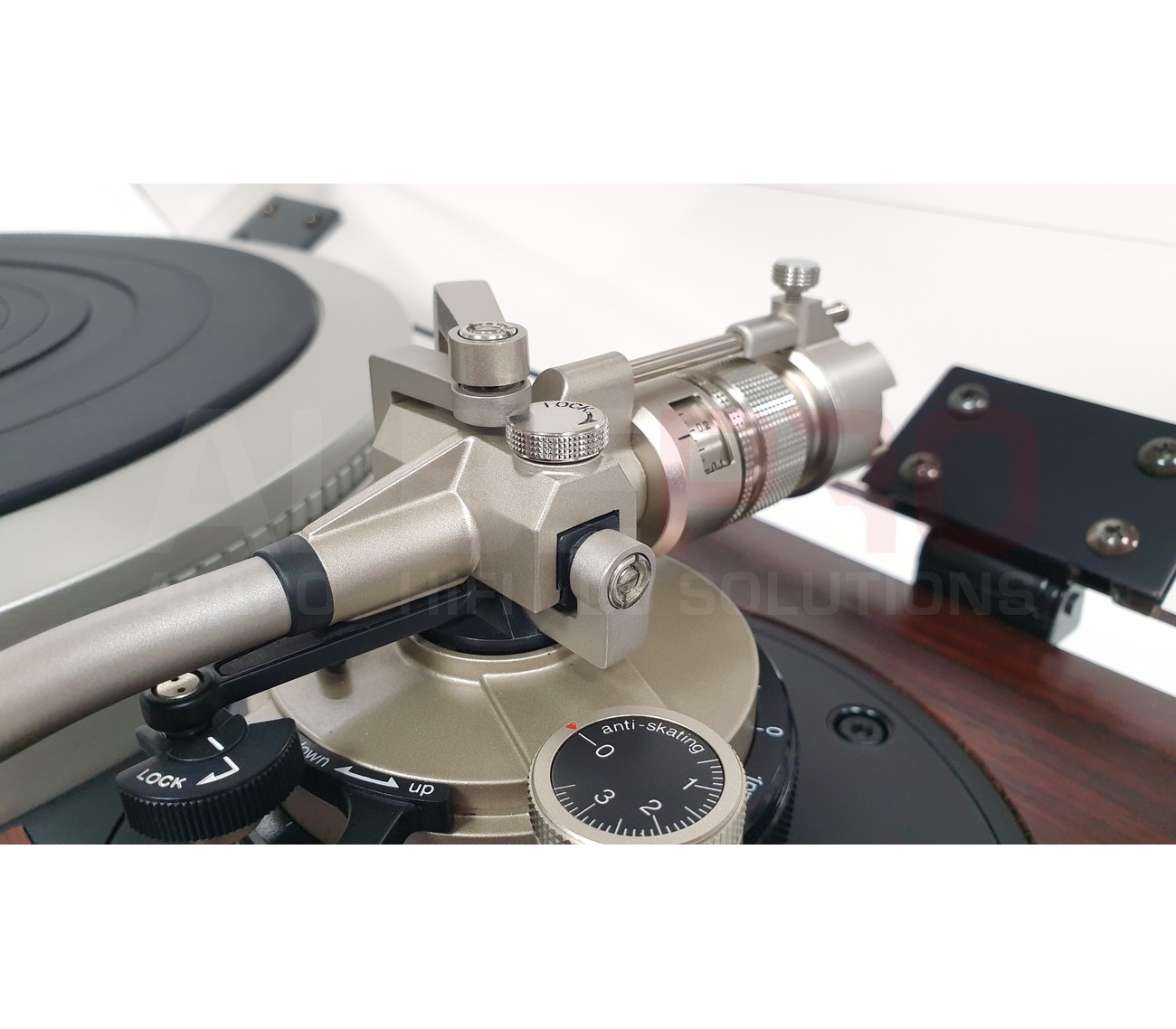

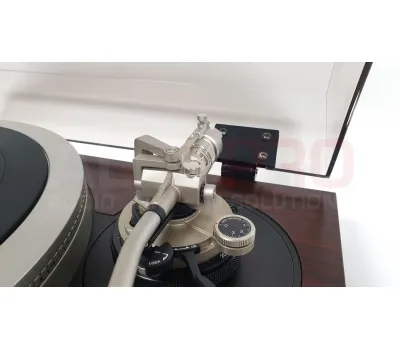

The tonearm consists of the EPA-B500 arm base and the EPA-A501H universal arm unit.

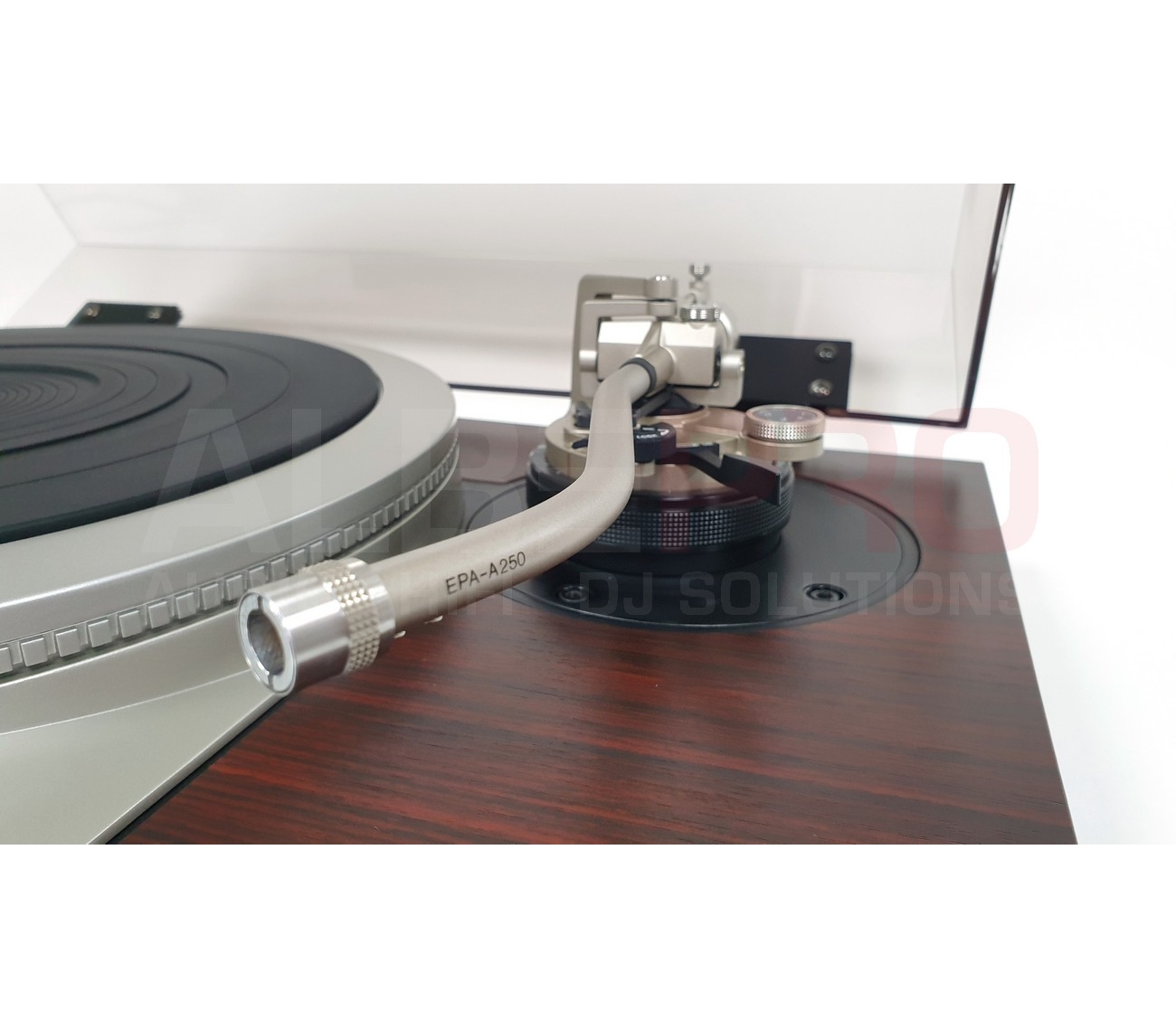

While the EPA-A501H is compatible with a wide range of cartridges, the EPA-B500 arm base features a slide-in connector which permits users to substitute any of the various optional arm units (EPA-A501H,A501M, A501L, A501E, A501G- and EPA-A250) of the EPA-500 tonearm system.
Such a complete tonearm system allows compliance-mass matching for almost any hifi cartridge ever made, excludingthose with built-in headshells.
Outstanding Total Performance and Tonearm Interchangeability
Total Quarz Control, Continuous Pitch Adjustment Within +/- 6%
Instant Starts 0.7sec and Steady Speed Due to High Torque 1.5 kg.cm, Direct Drive Motor and Advanced Circuitry
Single Molded Turntable Base Uses Heavy Rubber Material. Turntable and Tonearm Panel Are Isolated to Eliminate Resonance

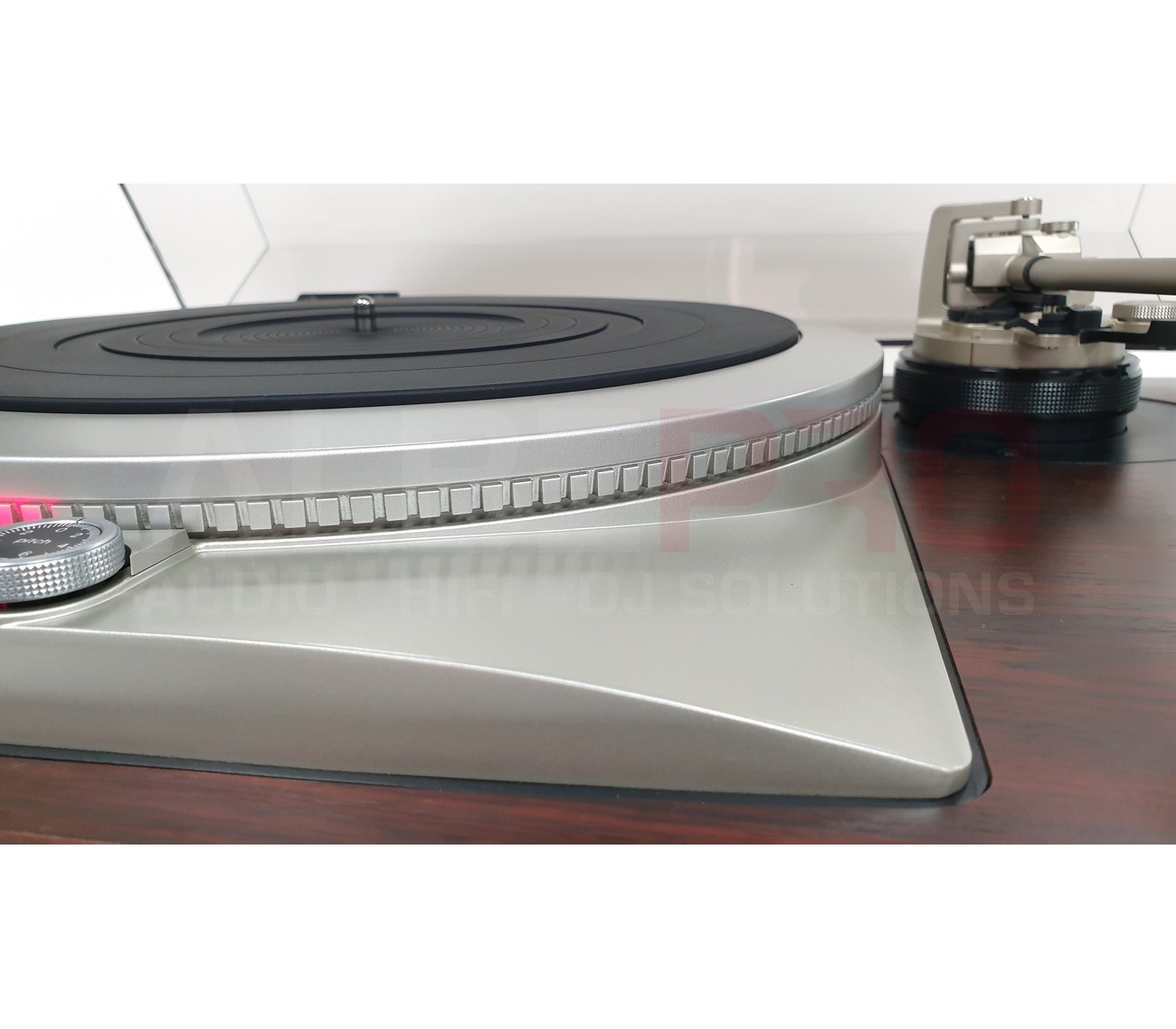

Large Platter with Three-Fold Damping to Absorb External Vibrations
Laser Holography Analysis Turntable Platter, Frequency 1098 Hz, Sound Pressure Level 90 dB
Slide-in Connector for Arm Interchangeability

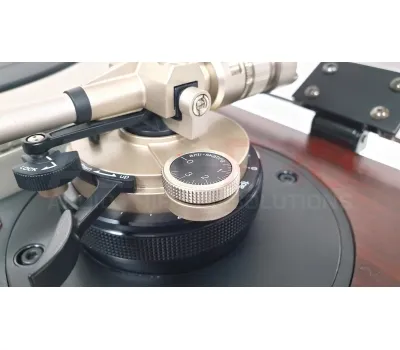

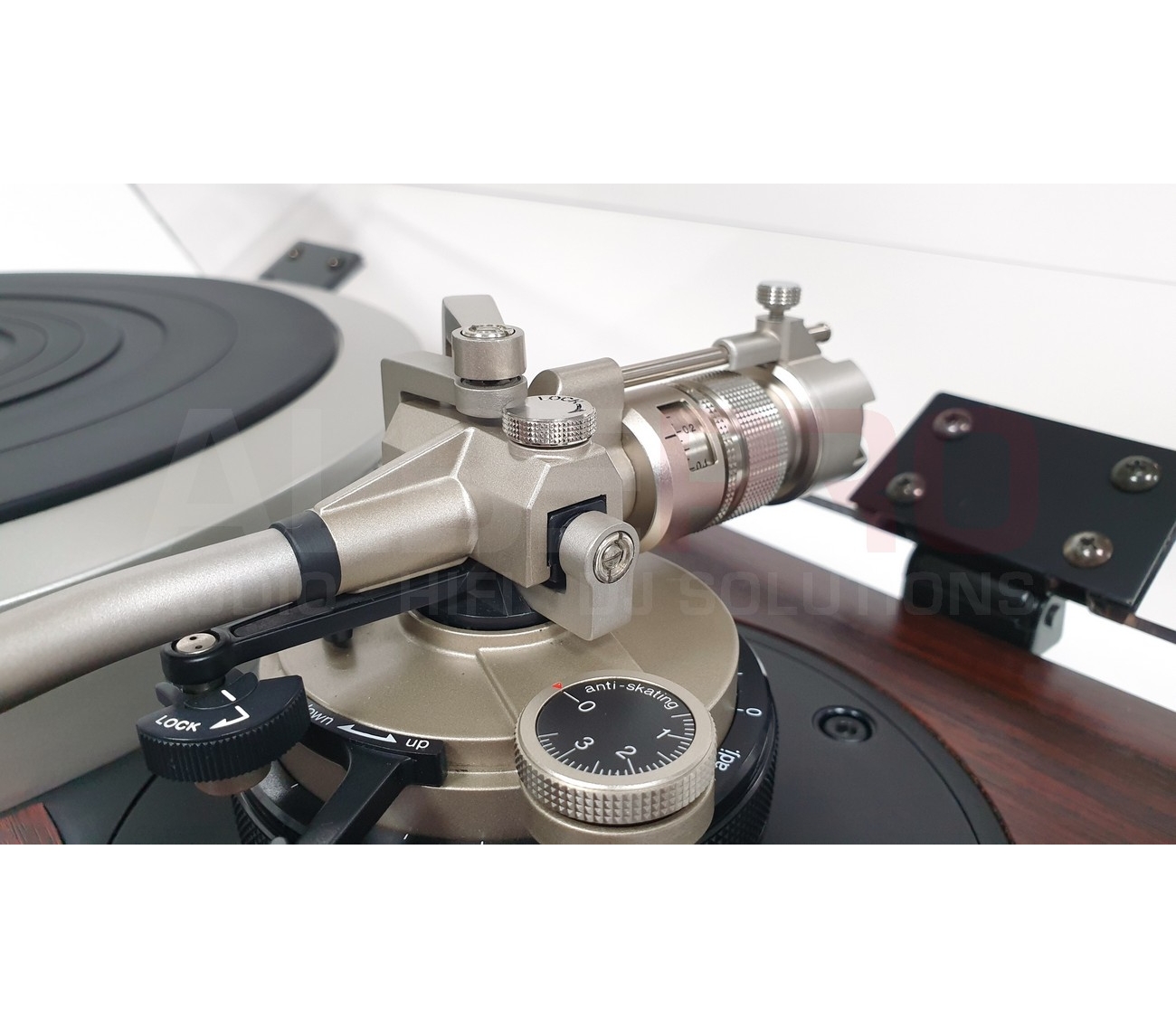

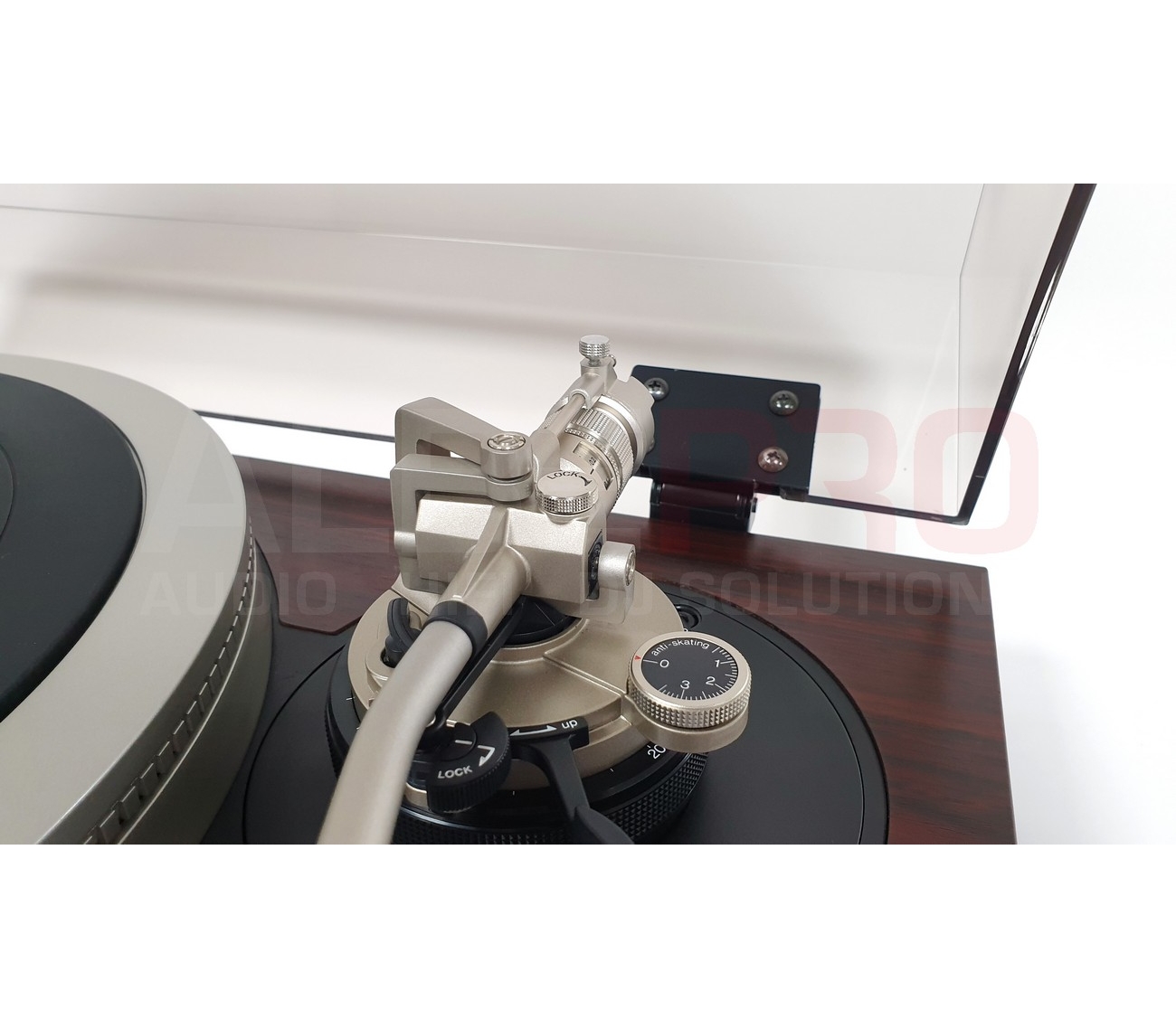

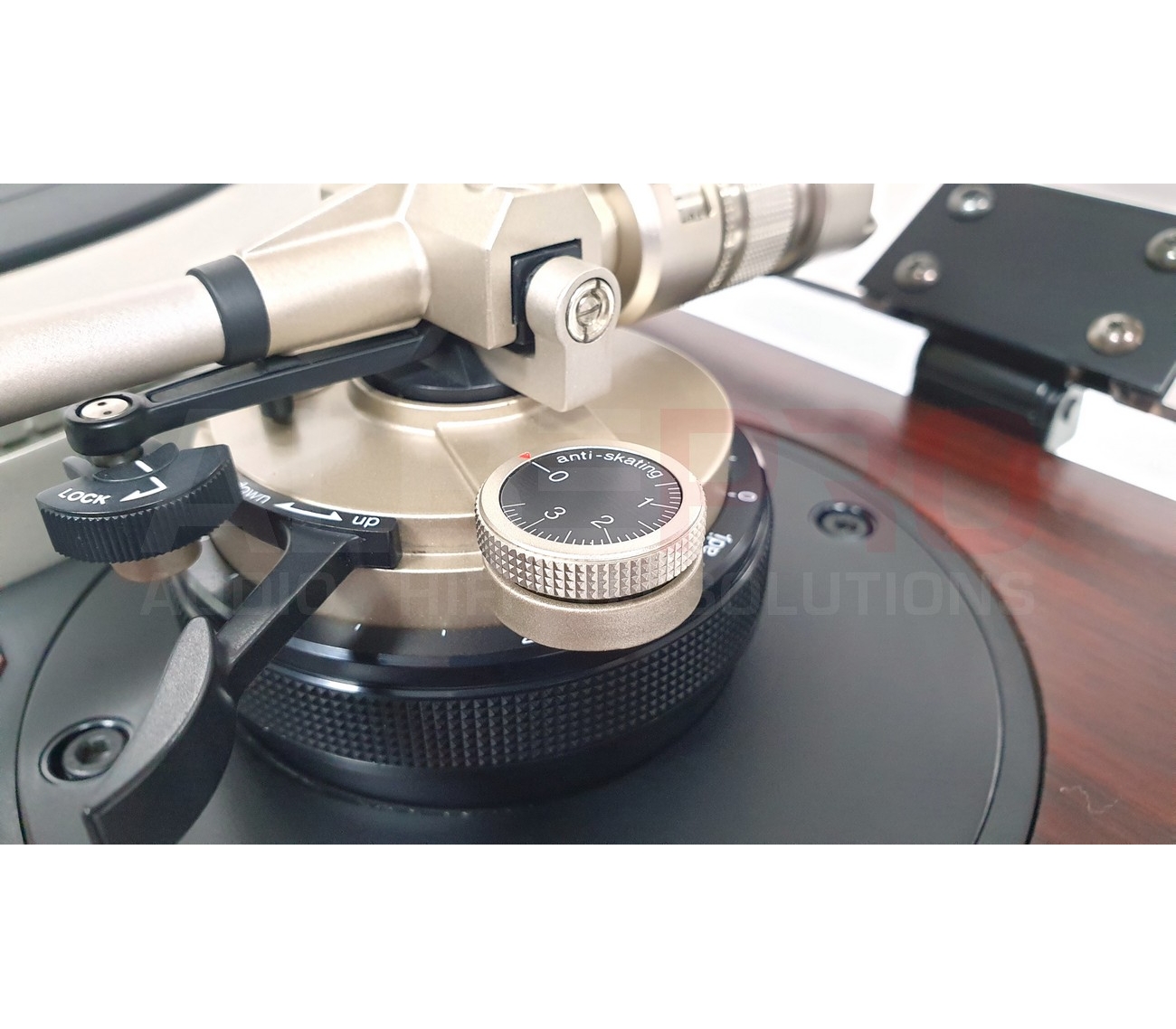

Universal Tonearm with Dynamic Damping Device; Mounted on Arm Base with Gimbal Suspension
Low Frequency Range Response
Full cycle detection frequency generator and high torque integral rotor-platter direct drive motor.
Gimbal suspension system with bearing friction of only 7 milligrams or less in both axes.
Strong connection between arm unit and arm base due to a locking, slide-in, self-cleaning connector with gold-plated terminals.

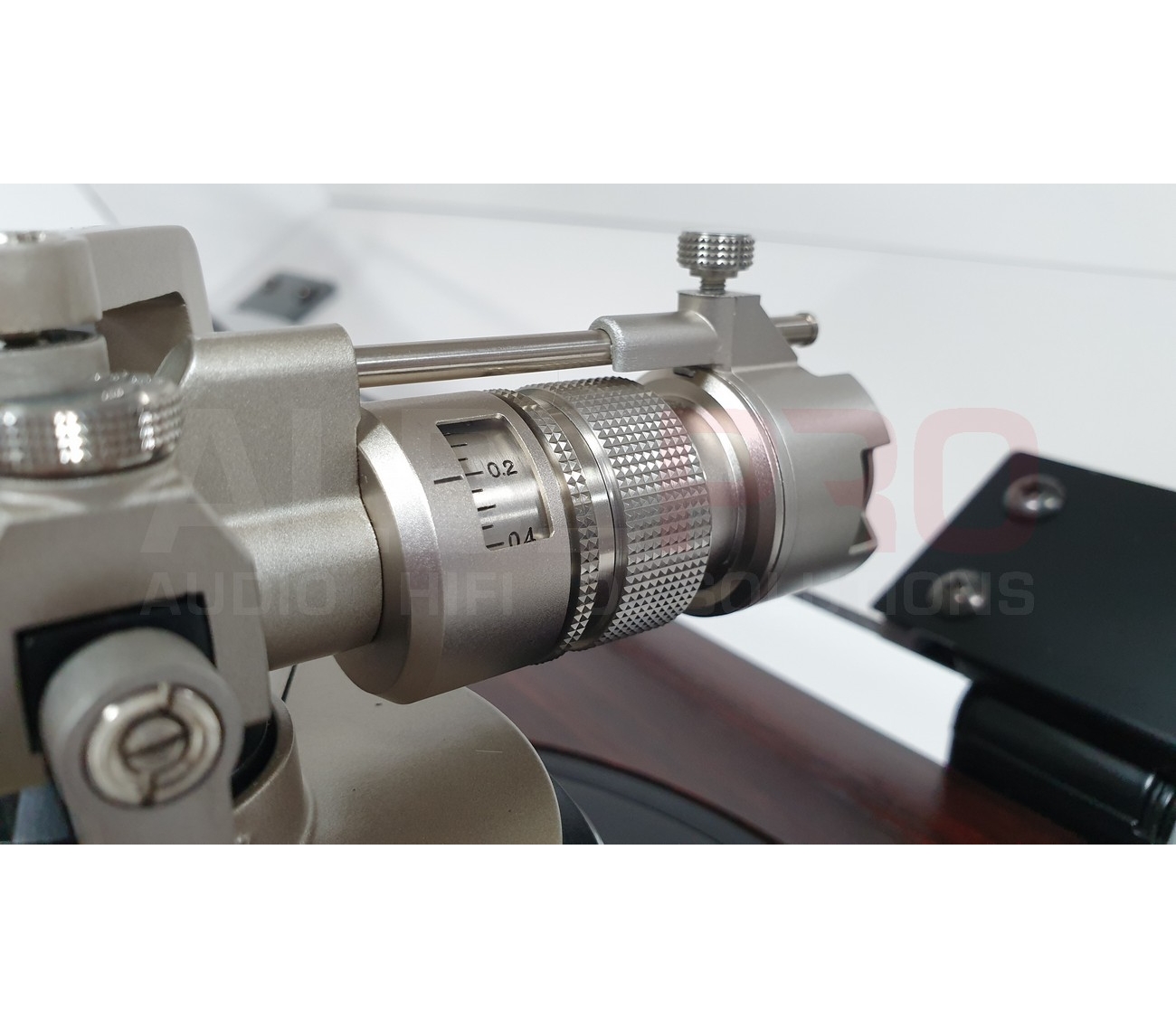

Accurate tonearm height adjustment up to 20 mm with precision helicoids.
Pre-Owned used product
Vey beautiful condition with minimal wear only
Displayed in non-smoking area
Very rare in such a beautiful condition, original pictures
100% full working order
Norstone SKYE Cable RCA 100 (+upgrade massa) 150 cm new

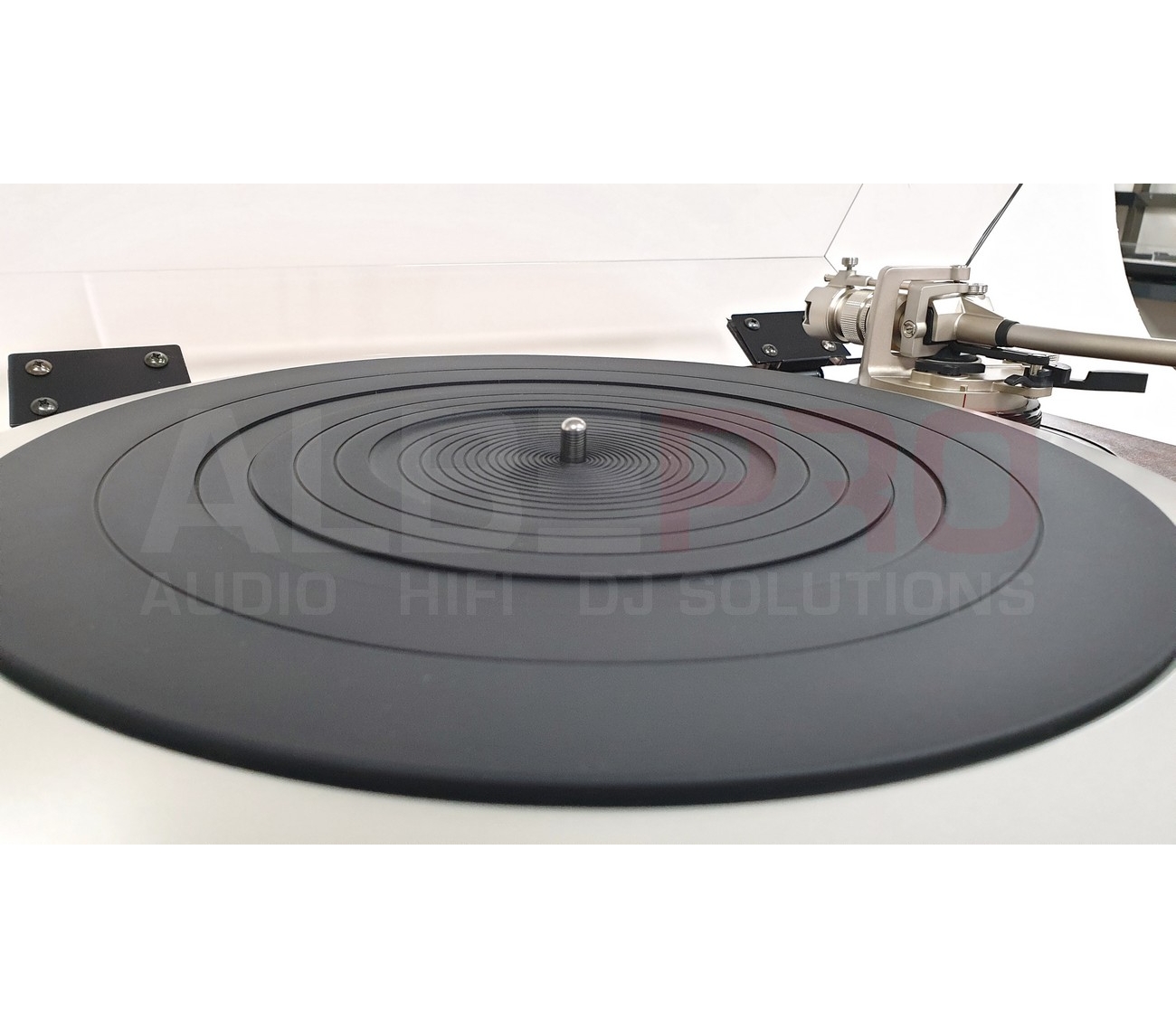

Technics rubber mat new
Voltage AC 220~240V 50/60Hz
12 months on technical side
No returns on pre-owned products
All our pre-owned products are carefully selected, minimum user tracks, fully serviced and tested, technical and optical in absolute great condition
