Nagaoka JN-P100
Ga over de afbeelding met je muis om een vergroting te zien

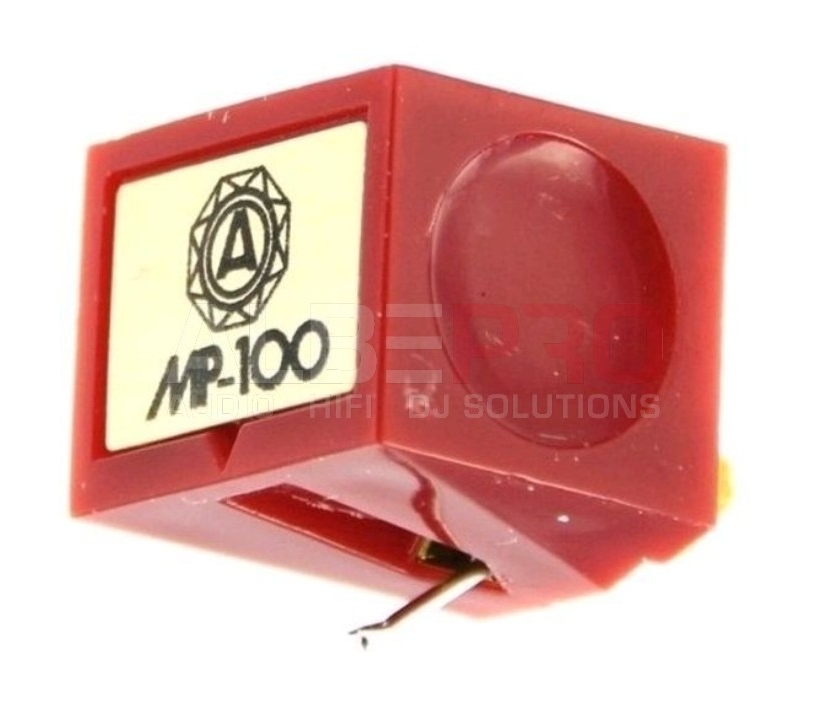

Nagaoka JN-P100
Originele vervangings naald voor de Nagaoka MP-100 element.
ALBEPRO is NAGAOKA's officiële dealer in Nederland
Het complete "MP" programma en de nieuwe "JewelTone" serie van Nagaoka vindt u in ons programma inclusief de nieuwe DJ-44G vervangings naald.
Nagaoka programma
Specificaties
| Cartridge and Stylus | |
| Model | MP-100 |
| Type | Moving Permalloy |
| Frequency Response | 20-20.000 Hz |
| Vertical Tracking Angle | 30 ° |
| Vertical Tracking Force | 1.8 – 2.0 g |
| Recommended VTA (VTF) | 2.0 g |
| Stylus Construction | Bonded diamond, round shrank ? |
| Stylus Shape | Spherical |
| Stylus Curvature Radius | 0.6 mil |
| Recommended Load Impedance | Min. 47K ohms (when head amplifier is connected) |
| Recommended Load Capacitance | 100 pF |
| Coil Impedance | |
| DC Resistance | |
| Coil Inductance | |
| Output Voltage | 5.0 mV (at 1 kHz, 5 cm/sec) |
| Output Channel Balance | Better than 1.5 dB (1 kHz) |
| Channel Separation | Better than 23 dB (1 kHz) |
| Cantilever | Aluminium, 0.5 mm diameter |
| Static Compliance | |
| Dynamic Compliance | 5.5 x 10-6 cm/dyne (100 Hz) |
| Mounting | Half-inch |
| Cartridge Weight | 6.5 g |
| Cartridge & headshell Weight | 16.5 g |
| Wire Used for Coil | High Purity Copper Wire （φ0.04 3UEW） |
| Body Material | Anti-ferro magnetic permalloy shield casing |
| ABS resin | |
| Mounting Feature | Half-inch mount |
| Terminal Pins | Brass（gold plated） |
| Dimensions | 18.0 mm H × 17.0 mm W × 28.6 mm D |
| Accessories Included (cartridge only) | non-magnetic screwdriver |
| 2 washers & 2 nuts | |
| cartridge installation screws | |
| 10 mm × 2,8 mm × 2 | |
| 13 mm x 2,8 mm x 2 | |
| plastic protector; | |
| Accessories Included (cartridge +Headshell) | plastic protector |
| Notes | Mounting Feature: |
| Note: |
