Ortofon DS-3 Digital Stylus Pressure Gauge

Ortofon DS-3 High Precision Digital Stylus Pressure Gauge

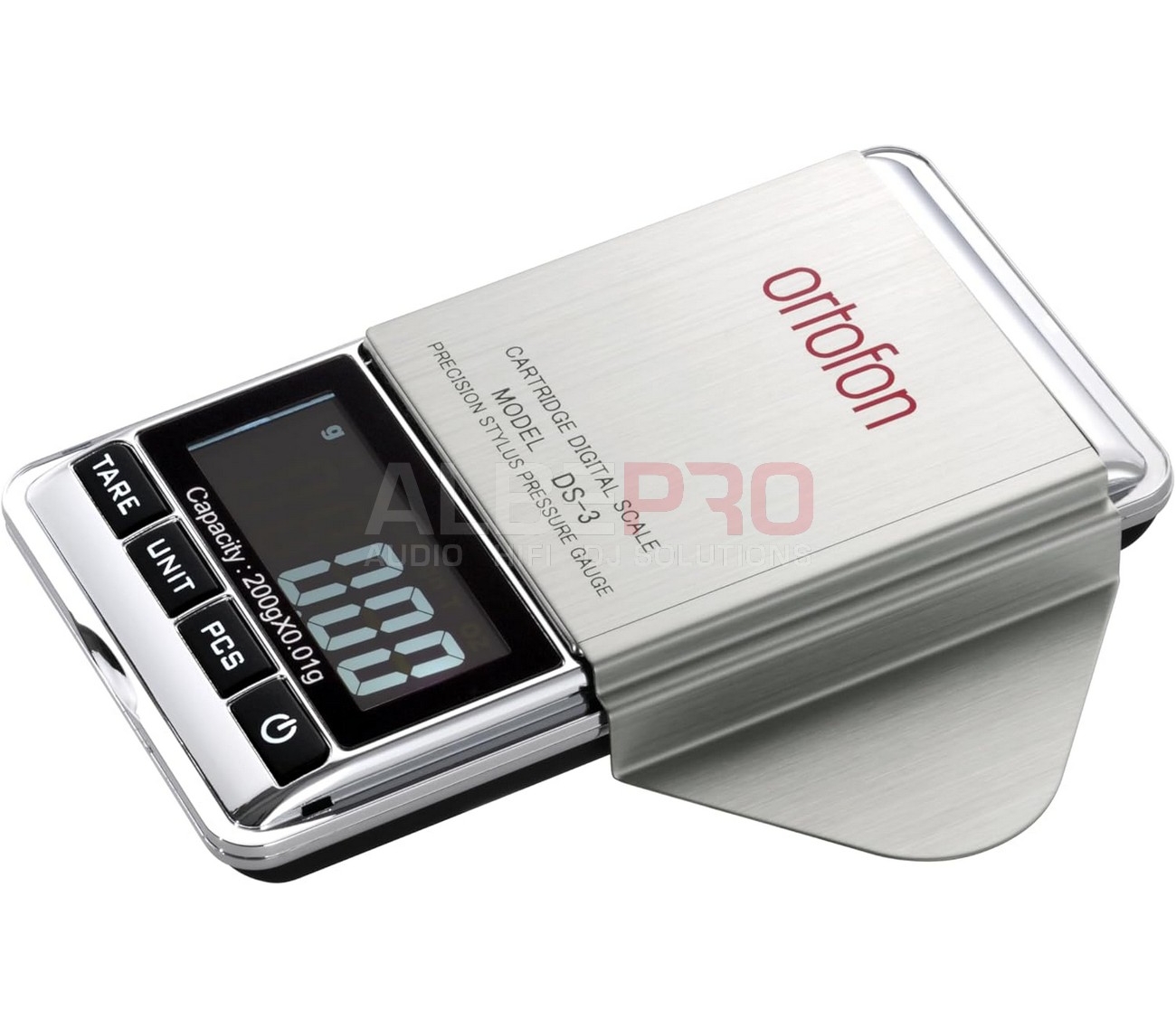

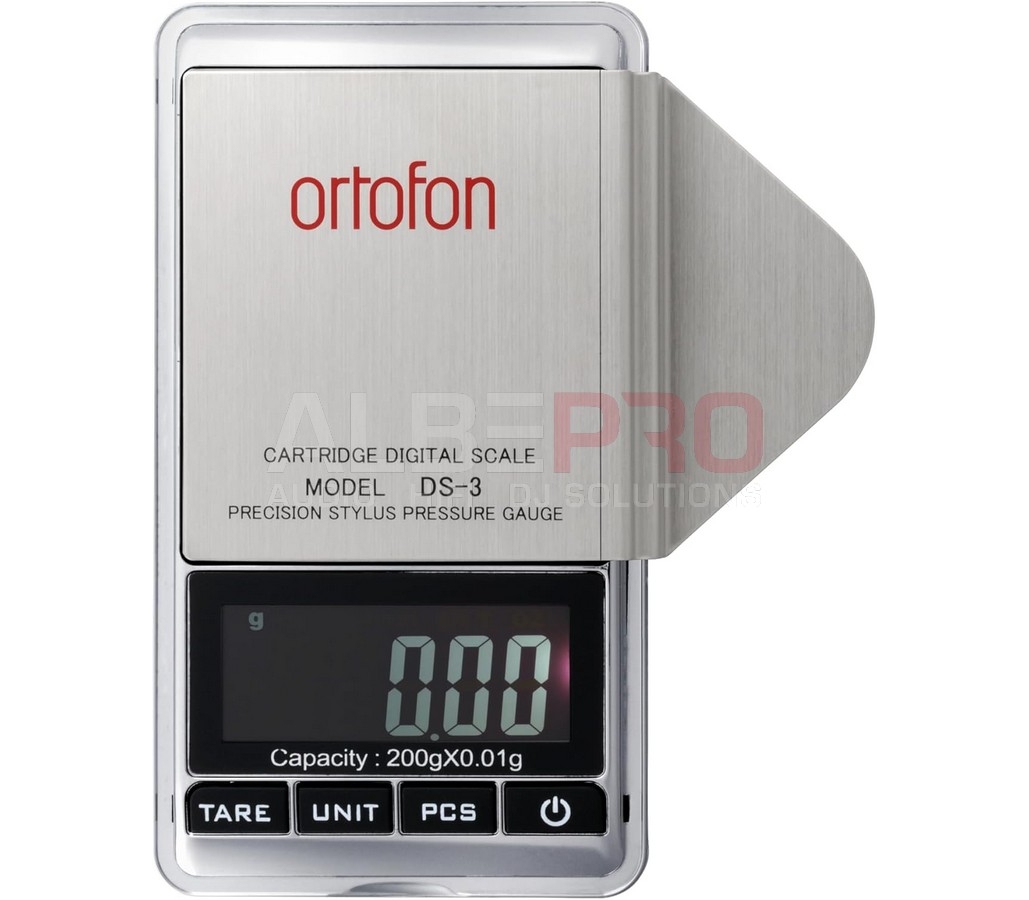

The DS-3 stylus pressure gauge is a new, lightweight, and compact digital measuring instrument. This miniature, ultra-precise, non-magnetic device allows you to fine-tune your tonearm to the smallest detail. The DS-3 is factory-calibrated for highly accurate measurements with a tolerance of ±0.01 g.

How to Use the DS-3

1. Turn on the device using the ON button. The display will show 0000.
2. Press the UNIT button to select the measurement unit (default: grams/g).
3. Place the DS-3 on the turntable (without vinyl).

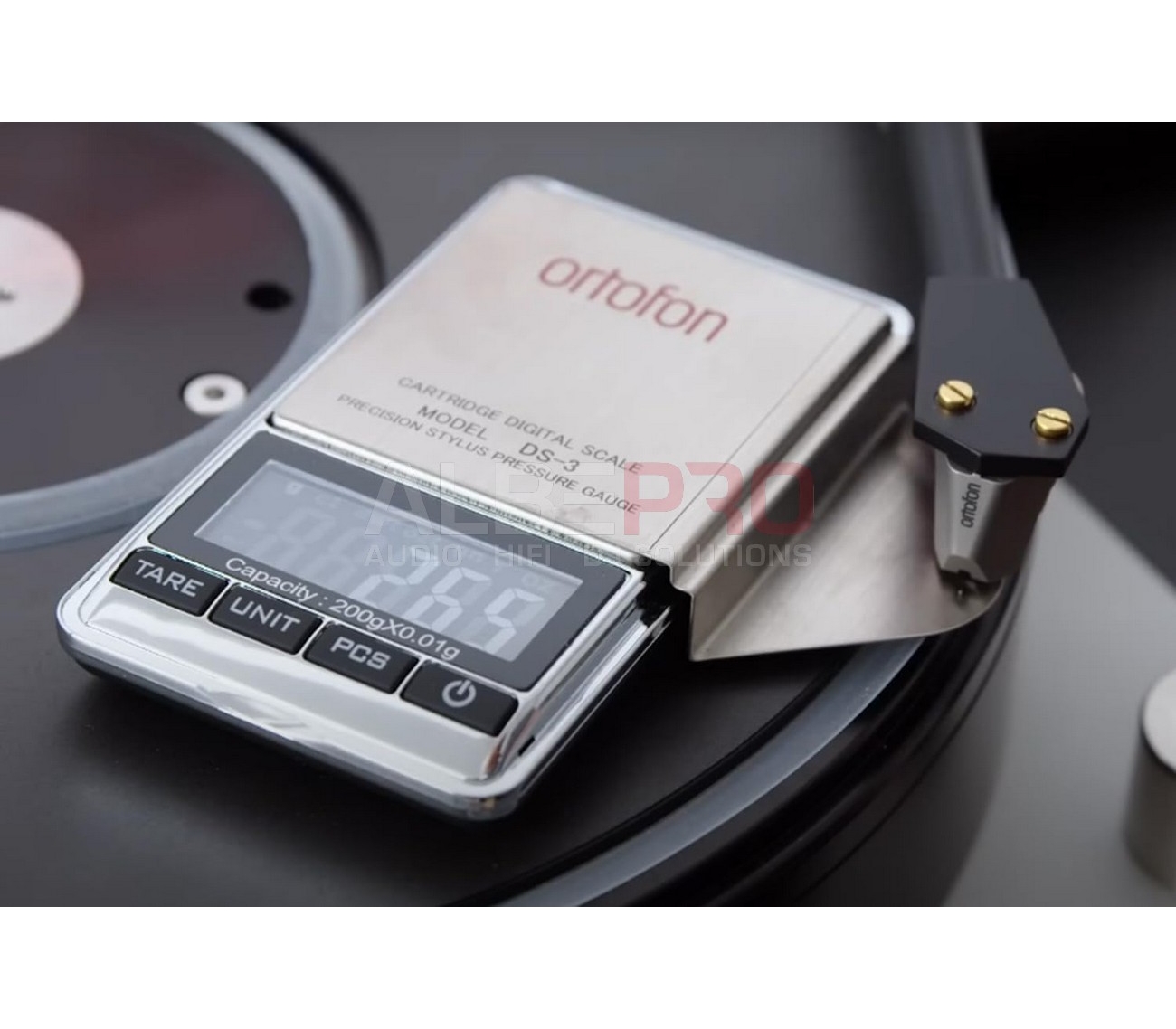

4. Place the stylus on the measurement plate on the right side of the device. The display will start blinking and stop once the measurement is complete. The value displayed is the stylus pressure.
5. The display will automatically dim after 5 seconds and turn off after 60 seconds of inactivity.
6. When the battery is low, LO will appear on the screen. Replace both batteries.

Specifications

• Sensitivity: 0.01 g
• Measurement range: 0.1 g – 200 g
• Battery: 2 × AAA
• Dimensions: 120 × 60 × 17 mm (L × W × H)
• Weight: 70 g
• LCD display with backlight
• Automatic shut-off
• Protection against high temperatures, dust, and humidity
• Carefully place objects on the measurement plate
• Operating temperature: +10°C to +30°C
• Do not place objects heavier than 200 g on the measurement plate
• Ensure a flat surface for accurate measurements
