AT-VM745xML
The Premium Dual Moving Magnet Cartridge for Unmatched Vinyl Sound Quality at ALBEPRO
Are you looking for the ultimate MM cartridge for your Technics SL-1200 series turntable or other high-end turntables?
The Audio-Technica AT-VM745xML is the top choice for serious audiophiles who demand exceptional sound reproduction. This Moving Magnet cartridge delivers unparalleled playback quality with incredible detail and clarity for your vinyl collection.
Why the AT-VM745xML is the Best Choice

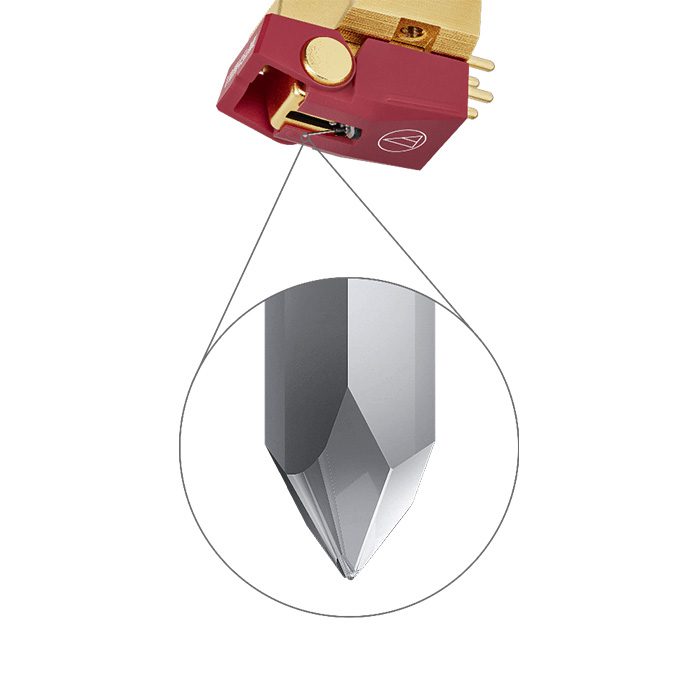

MicroLine® Stylus: The advanced MicroLine stylus of the AT-VM745xML ensures excellent tracking and minimizes distortion, even at higher volumes. It provides detailed and rich reproduction of the finest nuances in your music, especially in complex recordings.
Outstanding Sound Quality: This cartridge offers a wide dynamic range, with warm lows, transparent highs, and a natural midrange. It’s perfect for playing demanding music that requires the highest sound quality.
Reliability and Durability: The high-quality construction of the AT-VM745xML ensures consistent performance for years. The robust design guarantees you’ll enjoy excellent sound quality again and again, without any compromise.
Precise Channel Tracking: Designed for exceptional channel isolation, this cartridge ensures clarity and detail, even in the most demanding tracks. You’ll experience no loss of quality or distortion, even at high volumes.
Perfect Match for the Technics SL-1200: The AT-VM745xML is optimized for use with the Technics SL-1200 series and other premium turntables, making it ideal for passionate vinyl collectors seeking a professional audio experience.
Key Specifications of the AT-VM745xML:
-
Type: Moving Magnet (MM)
-
Stylus Type: MicroLine® (for detailed tracking and minimal distortion)
-
Cantilever: Solid boron (Ø 0.28 mm)
-
Tracking Force: 1.8 g to 2.2 g (standard 2.0 g)
-
Frequency Response: 20 Hz - 27 kHz
-
Output Voltage: 3.7 mV (1 kHz, 5 cm/sec)
-
Channel Separation: 28 dB (1 kHz)
-
Recommended Load Impedance: 47 kΩ
-
Weight: 9.0 g
-
Stylus Shape: MicroLine®
-
Integrated System: Yes, for easy use with Technics SL-1200 series and other premium turntables
Upgrade Your Technics SL-1200 with the AT-VM745xML at ALBEPRO
The AT-VM745xML is the ideal MM cartridge for audiophiles who do not want to compromise on their sound experience. Whether you are an experienced audiophile or a new vinyl collector, this cartridge offers you a detailed and professional sound reproduction that takes your listening experience to the next level.
Order the AT-VM745xML at ALBEPRO – Now Available!
At ALBEPRO, we offer the Audio-Technica AT-VM745xML at the best price with fast delivery. Upgrade your turntable today and discover the sublime sound quality of this high-end cartridge. Order now and enjoy the ultimate sound reproduction your vinyl collection deserves!
Comparison of the AT-VM745xML and AT-VM740xML
Feature | AT-VM740xML | AT-VM745xML |
---|---|---|
Channel Separation | 25 dB (1 kHz) | 28 dB (1 kHz) |
Frequency Response | 20 Hz - 25 kHz | 20 Hz - 27 kHz |
Output Voltage | 3.2 mV (1 kHz, 5 cm/sec) | 3.7 mV (1 kHz, 5 cm/sec) |
Weight | 8.8 g | 9.0 g |
Cantilever | Taped aluminum tube | Solid boron (Ø 0.28 mm) |
What’s the Difference Between the AT-VM740xML and the AT-VM745xML?
-
Price and Positioning
AT-VM740xML: The entry-level model in the 700 series, offering excellent sound quality with great value for money.
AT-VM745xML: The premium model of the series, designed for audiophiles who demand the ultimate sound quality and precision. It offers more advanced performance for the most discerning listeners. -
Stylus Type
Both models feature the MicroLine® stylus, but the AT-VM745xML offers even more refined tuning, resulting in a more detailed and accurate sound reproduction. -
Channel Separation
The AT-VM745xML has an improved channel separation of 28 dB, which ensures better isolation between the channels and a clearer stereo image, especially in more complex recordings. -
Frequency Response
The AT-VM745xML has a frequency range that extends to 27 kHz, allowing it to capture more details in the highest frequencies and deliver a more transparent sound. -
Output Voltage
The AT-VM745xML has a higher output of 3.7 mV, providing a stronger signal and making it better suited for use with preamps with lower sensitivity. -
Weight
The AT-VM745xML weighs 9.0 g, which generally leads to more stable tracking and less sensitivity to impurities in the sound. -
Cantilever
The AT-VM745xML features a solid boron cantilever, which makes the cartridge stiffer than the aluminum cantilever in the AT-VM740xML. This results in less distortion and a more accurate sound reproduction.
If you’re looking for a more refined and detailed listening experience, the AT-VM745xML is the perfect choice for you. It combines Audio-Technica’s reliability with unparalleled precision in sound reproduction!
Since all the cartridges in the AT-VMx series share the same housing and the stylus can be easily removed, it's possible to try different AT-VMx styli and experiment with various sound characteristics. This provides the flexibility to fine-tune the sound to your personal preferences.
Available replacement styli for the AT-VMx series:
-
AT-VMN10xCB – Conical, bonded, aluminum cantilever
-
AT-VMN20xEB – Elliptical, bonded, aluminum cantilever
-
AT-VMN30xEN – Elliptical, nude, aluminum cantilever
-
AT-VMN40xML – MicroLine®, nude, aluminum cantilever
-
AT-VMN45xML – MicroLine®, nude, boron cantilever
-
AT-VMN50xSH – Shibata, nude, boron cantilever
-
AT-VMN60xSL – Special Line Contact, nude, boron cantilever
At ALBEPRO, we not only offer a wide range of Audio-Technica products, but we also ensure that you can find the right replacement stylus for your specific needs. Whether you're looking for a new stylus or want to optimize your turntable, you can rely on expert advice and fast delivery at ALBEPRO.
Order your AT-VMx cartridge or stylus today at ALBEPRO and experience the difference in sound quality!
Specs
Cartridge & Stylus | |
---|---|
Frequency Response | 20 to 27,000 Hz |
Channel Separation | 26 dB (1 kHz) |
Vertical Tracking Force | 20° |
Tracking Force | 1.8 to 2.2 g (2.0 g standard) |
Stylus Construction | Nude Microlinear |
Recommended Load Impedance | 47 k ohms |
Coil Impedance | 3.2 k ohms (1 kHz) |
DC Resistance | 750 ohms |
Coil Inductance | 480 mH (1 kHz) |
Output Voltage | 3.7 mV (1 kHz, 5 cm/sec.) |
Output Balance | 1.0 dB (1 kHz) |
Cantilever | 0.28 mm (0.011”) diameter solid boron |
Static Compliance | 20 × 10-6 cm/dyne |
Dynamic Compliance | 7 × 10-6 cm/dyne (100 Hz) |
Dimensions | 29.0 mm (1.1”) × 18.3 mm (0.72”) × 17.5 mm (0.69”) (H × W × D) |
Accessories Included | ・Cartridge installation screws** (M2.6) (10.0 mm (0.39”) × 2, 8.0 mm (0.31”) × 2, 5.0 mm (0.20”) × 2), Washer × 2, Non-magnetic screwdriver, Brush |
Threaded Hole | M2.6 × 2 |
Recommended Load Capacitance | 150 to 250 pF |
Replacement Stylus | AT-VMN45xML* (sold separately) |
Stylus Curvature Radius | 2.2 × 0.12 mil |
Type | VM |
Weight | 8.8 g (0.31 oz) |
Notes | *The replacement stylus of this product is used for AT-VMx series products. In this series, we offer replacement styli with different stylus tip structures and point shapes. **Cartridge installation screws (5.0 mm (0.20”)) x 2 are used to secure the cartridge in the box at the time of purchase. Be sure to keep and not lose these after removing the cartridge from the box. For product improvement, the product is subject to modification without notice. |
